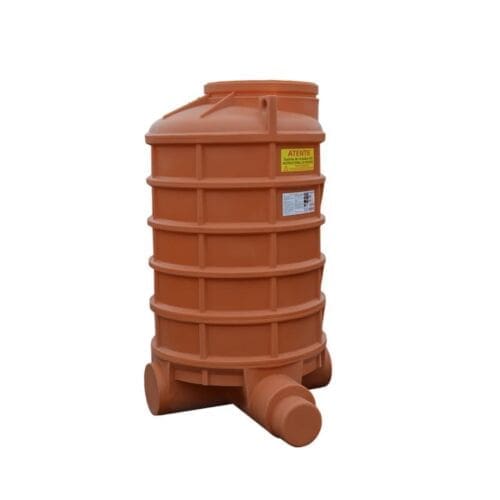

VALPlast INSPECTION CHAMBER CLOSED BASE H=1830
VALPlast PE inspection chambers are used in external sewer networks for wastewater and stormwater in localities, gravity flow with a free surface.
Product standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the rotational molding process ("rotomolding").
They have a cylindrical shape with reinforcements and adjustments that ensure the chamber’s structural integrity.
Access into the chamber is via profiled steps in the chamber wall. The access diameter into the chamber is 640 mm. The nominal external diameter of the inspection chamber is 1100 mm.
Accessories for inspection chambers (not included; can be ordered separately):
– 640 mm sealing gasket for inspection chamber (47901000116)
– Extension with H=100–300 mm (47901000213) or with H=100–600 mm (47901000216) for inspection chamber. Important: More than one extension cannot be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with Dext 700 mm (47901000008) or Dext 800 mm (47901000006) – select the appropriate cover depending on the situation (chamber with/without extension).
Product standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the rotational molding process ("rotomolding").
They have a cylindrical shape with reinforcements and adjustments that ensure the chamber’s structural integrity.
Access into the chamber is via profiled steps in the chamber wall. The access diameter into the chamber is 640 mm. The nominal external diameter of the inspection chamber is 1100 mm.
Accessories for inspection chambers (not included; can be ordered separately):
– 640 mm sealing gasket for inspection chamber (47901000116)
– Extension with H=100–300 mm (47901000213) or with H=100–600 mm (47901000216) for inspection chamber. Important: More than one extension cannot be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with Dext 700 mm (47901000008) or Dext 800 mm (47901000006) – select the appropriate cover depending on the situation (chamber with/without extension).
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Inaltime | 1830 |
| Cod vamal | 39251000 |
| Subclasa | OUTDOOR SEWAGE VISITING CABINS |
