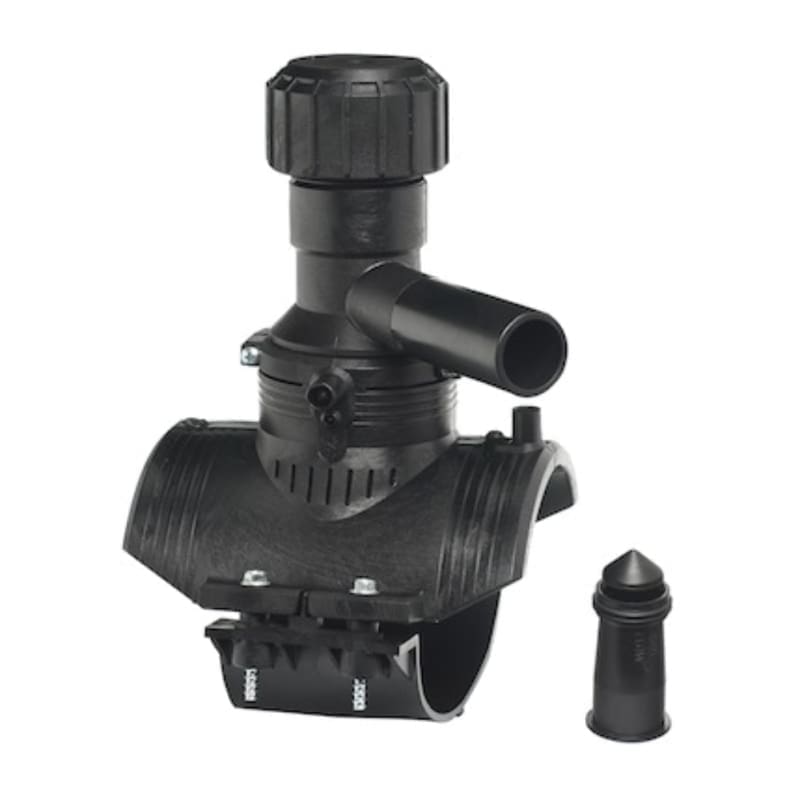

Used in natural gas supply networks with service connection pressure of 35 mbar–5 bar. Equipped with a tapping system, and coupling can be performed whether the network is pressurized or not. The service tees are factory-fitted, on the outlet of the service tee, with the gas stop device, a safety device designed to prevent explosions, personal injury, gas losses, etc. in the event of accidental breakage of the service connection pipe. The safety devices are non-self-resetting; to unblock them, special reset kits are required, available from Distrigaz Sud/ENGIE teams.
-Material: PE 100 SDR 11 (ISO S5)
-Manufacturing standard: EN 1555-1:2011, ISO 4437-3
-Manufacturing method: injection molding
-The strength of the electrofusion fitting is embedded in the material
-The inner surfaces of the fittings are smooth, without grooves
-Welding temperature between -10°C and +45°C
-Welding voltage 40 V
-With integrated drill for tapping pressurized pipes
-4 mm connectors
-Weld indicators with limited travel
-Electrofusion service tees = d250 mm are supplied with a fixing clamp, fastened at one end and with the tightening system at the other end. For installation, no special devices are required; a socket wrench is sufficient. Installation must be carried out according to the installation instructions by authorized personnel.
