Anti-burst above-ground hydrants are used for water supply in firefighting, in clean water networks with a maximum operating temperature of 40 °C, maximum pressure of 16 bar, and a frost depth of 1.25 m.
They are installed especially in exposed areas because, in the event of an accident, the hydrant practically yields from the flange area and self-closes, preventing water from gushing under pressure into alleys or roadways.
Reference Standards
EN 14384 Above-ground fire hydrants
EN 1092-2 Flanges and their joints. Round flanges for pipes, valves, fittings, and accessories designated by PN. Part 2: Cast iron flanges
The DN80 hydrant has 2 Type B connections (3)
Epoxy paint protection 250 microns
The total height of the hydrant is 2150 mm
It is equipped with an automatic draining device after the complete closing of the hydrant.

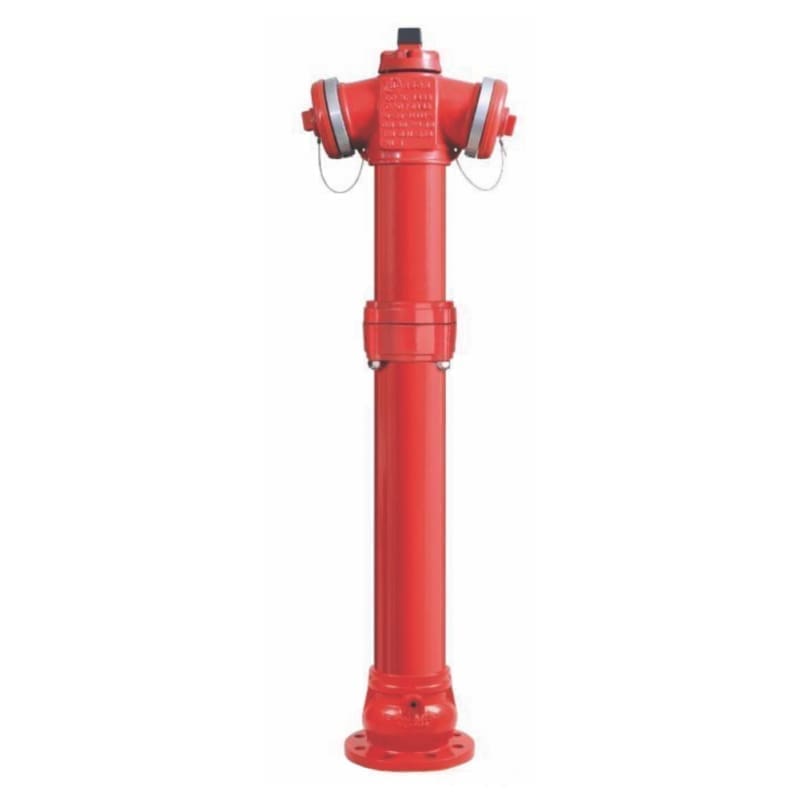

ABOVE-GROUND HYDRANT JAF VALWater PN10/PN16 DN 80 STANDARD Frost Depth=1250mm
Anti-burst above-ground hydrants are used for water supply in firefighting, in clean water networks with a maximum operating temperature of 40 °C, maximum pressure of 16 bar, and a frost depth of 1.25 m. They are installed especially in exposed areas because, in the event of an accident, the hydrant practically yields from the flange area and self-closes, preventing water from gushing under pressure into alleys or roadways. Reference Standards: EN 14384 Above-ground fire hydrants; EN 1092-2 Flanges and their joints. Round flanges for pipes, valves, fittings, and accessories designated by PN. Part 2: Cast iron flanges. The DN80 hydrant has 2 Type B connections (3). Epoxy paint protection 250 microns. The total height of the hydrant is 2150 mm. It is equipped with an automatic draining device after the complete closing of the hydrant.
| UM colete | PIECE |
|---|---|
| Tip articol | HYDRANT |
| Cod CPV | CPV 42131160-5 |
| Cantitate colet | 1 |
| Presiune nominala | 10 bar |
| Inaltime | 1250 |
| Cod vamal | 84818061 |
| Subclasa | HYDRANTS |
