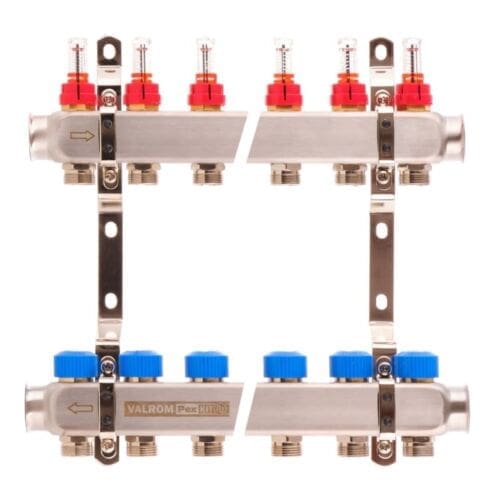

This system is utilized in underfloor heating/cooling installations, as well as in radiator heating systems. It distributes the heating medium to the underfloor heating coils and radiators, and the cooling medium in the case of underfloor cooling. It includes: – 1 distributor with balancing valves – 1 collector with thermostatic valves, featuring an option for electric control (thermoelectric head/actuator) – 2 supports for the distributor/collector. The balancing valve is a balancing valve for flow and pressure drop, according to project specifications. To ensure correct operation, please observe the flow direction. For flow visualization, a PexKIT FLOW METER 3/4″ (0.5-2.4 L/MIN) Valrom Code 64199000025 can be installed on the return (collector with thermostatic valves) for each circuit. Max. differential pressure: 0.8 bar. Max. working pressure: 10 bar. Max. working temperature: 90°C. Max. ambient temperature: 50°C. Dimensional characteristics: H = 288 mm, L = 50 mm, S = 25 mm, h1 = 54 mm, W = 210 mm, P = 77 mm, Ltot = 487 mm, L = 462 mm.
