Polyethylene to brass transition fitting.
-material: PE100, SDR 11 (ISO S5). CW617N brass.
-10 bar gas / 16 bar water (calculated for a temperature of 20C)
-4 mm connectors
-welding indicators with limited displacement
-integrated pipe fixing system
Welding must be performed by authorized welders with appropriate equipment and devices
and in compliance with the welding procedure.

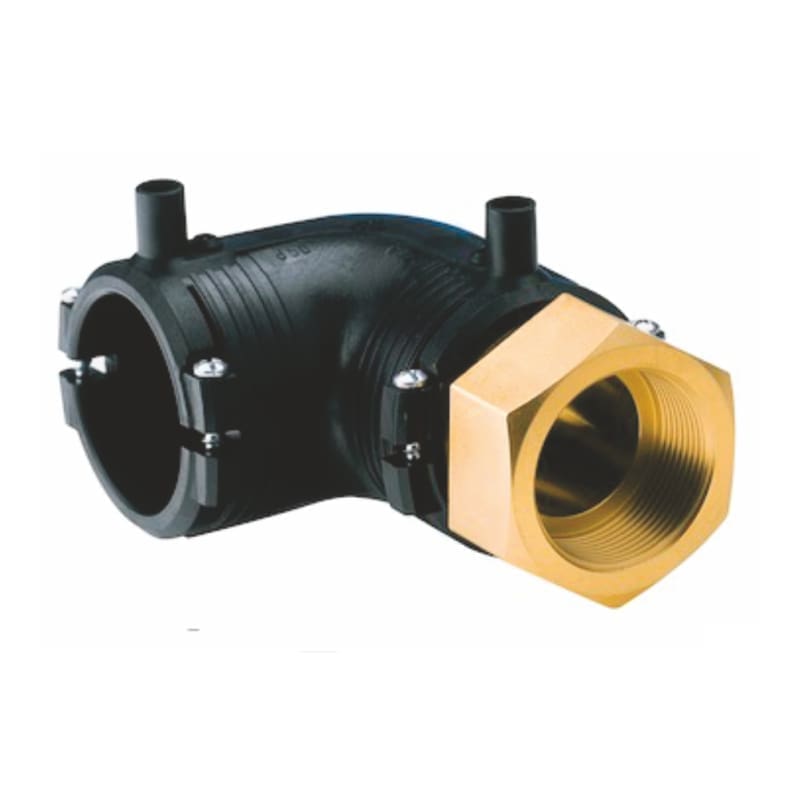

ELBOW 90° EF VALGasio PE/BRASS THREADED D.25X3/4” SDR11
Polyethylene-to-brass transition fitting. -material: PE100, SDR 11 (ISO S5). brass CW617N. -10 bar gas / 16 bar water (calculated for a temperature of 20°C) -4 mm connectors -welding indicators with limited displacement -integrated pipe clamping system Welding must be carried out by authorized welders using appropriate equipment and devices and in compliance with the welding procedure.
| Material | ALAMA |
|---|---|
| Tip articol | TOC |
| UM colete | BOX |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 8 |
| SDR | 11 |
| Diametru | 25×3/4" |
| Unghi | 90 Grade |
| Cod vamal | 74122000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
