These are used for natural gas networks, as well as for drinking water supply installations, made of high-density polyethylene pipes with thicknesses corresponding to SDR 11 SDR17 according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufacturing method by injection in PE100 molds, with the electrofusion fitting resistance embedded in the material with dimensions corresponding to SDR 11 (ISO S8), according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage 40 V. 4 mm connectors. Welding indicators with limited displacement. Detachable central stop. Welding is performed by authorized welders with appropriate equipment and in compliance with the welding procedure.

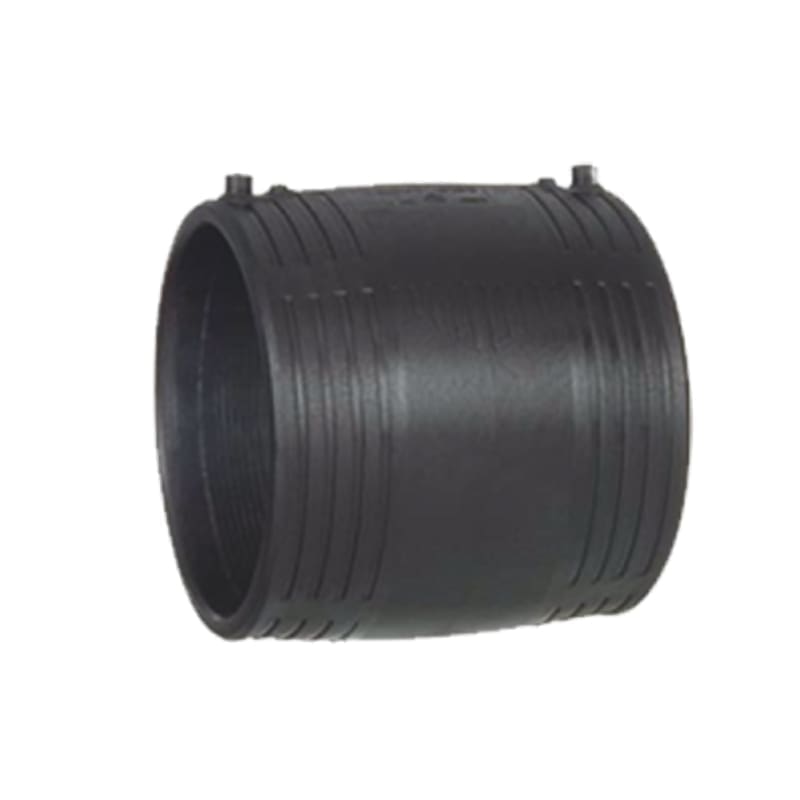

ELECTROFUSION COUPLING GF DN 75
These are used for natural gas networks, as well as for drinking water supply installations, made of high-density polyethylene pipes with thicknesses corresponding to SDR 11 SDR17 according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufacturing method by injection in PE100 molds, with the electrofusion fitting resistance embedded in the material with dimensions corresponding to SDR 11 (ISO S8), according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage 40 V. 4 mm connectors. Welding indicators with limited displacement. Detachable central stop. Welding is performed by authorized welders with appropriate equipment and in compliance with the welding procedure.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | MUFA |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 12 |
| Diametru | 75 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
