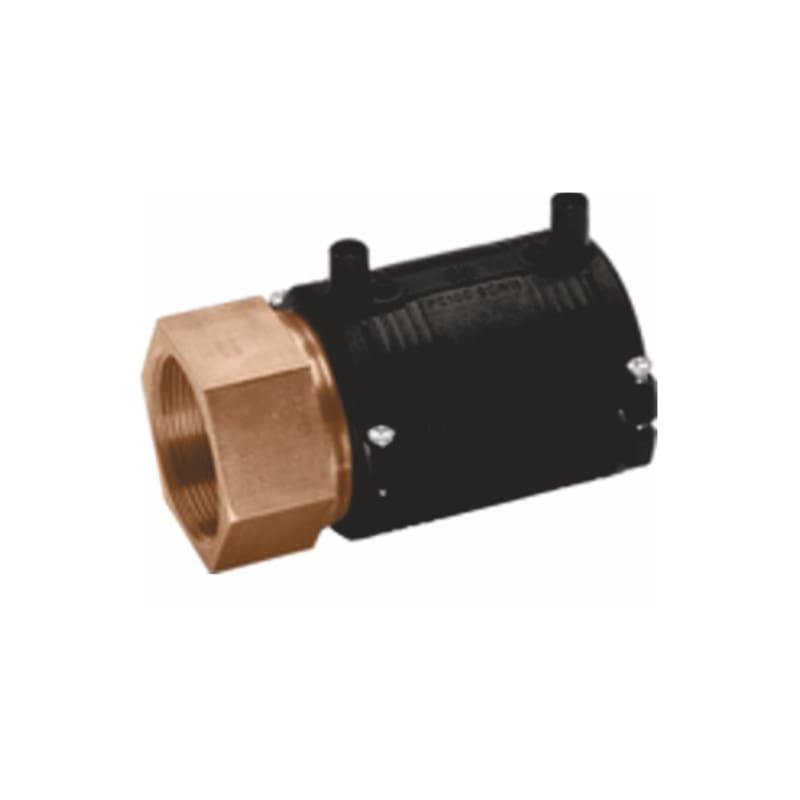

Polyethylene to brass transition fitting.
-material: PE100, SDR 11 (ISO S5). CW617N brass.
-10 bar gas / 16 bar water (calculated for a temperature of 20C)
-4 mm connectors
-welding indicators with limited displacement
-integrated pipe fixing system
Welding must be performed by authorized welders with appropriate equipment and devices
and in compliance with the welding procedure.
ELECTROFUSION PE/BRASS ADAPTER D. 63×1” FI SDR11
Polyethylene to brass transition fitting.
-material: PE100, SDR 11 (ISO S5). CW617N brass.
-10 bar gas / 16 bar water (calculated for a temperature of 20C)
-4 mm connectors
-welding indicators with limited displacement
-integrated pipe fixing system
Welding must be performed by authorized welders with appropriate equipment and devices
and in compliance with the welding procedure.
-material: PE100, SDR 11 (ISO S5). CW617N brass.
-10 bar gas / 16 bar water (calculated for a temperature of 20C)
-4 mm connectors
-welding indicators with limited displacement
-integrated pipe fixing system
Welding must be performed by authorized welders with appropriate equipment and devices
and in compliance with the welding procedure.
| Material | ALAMA |
|---|---|
| UM colete | BOX |
| Filet | FI |
| Tip articol | ADAPTOR |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 1 |
| SDR | 11 |
| Diametru | 63X1" |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
