for gas or water supply networks, installed buried in the ground. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for temperature of 20°C) -compliant with EN 1555-1:2011. ISO 4427-3. ISO 4437-3 -dimensions compliant with EN 12201-3:2011+A1:2012, EN 1555-3:2010+A1:2012 -manufacturing method: injection molding -electrofusion fitting resistance is embedded in the material -inner surfaces of the fittings have smooth surfaces, without striations -welding temperature between -10°C +45°C -welding voltage 40 V -4 mm connectors -limited displacement welding indicators – two welding zones Welding must be performed by authorized welders with appropriate equipment and in compliance with the welding procedure.

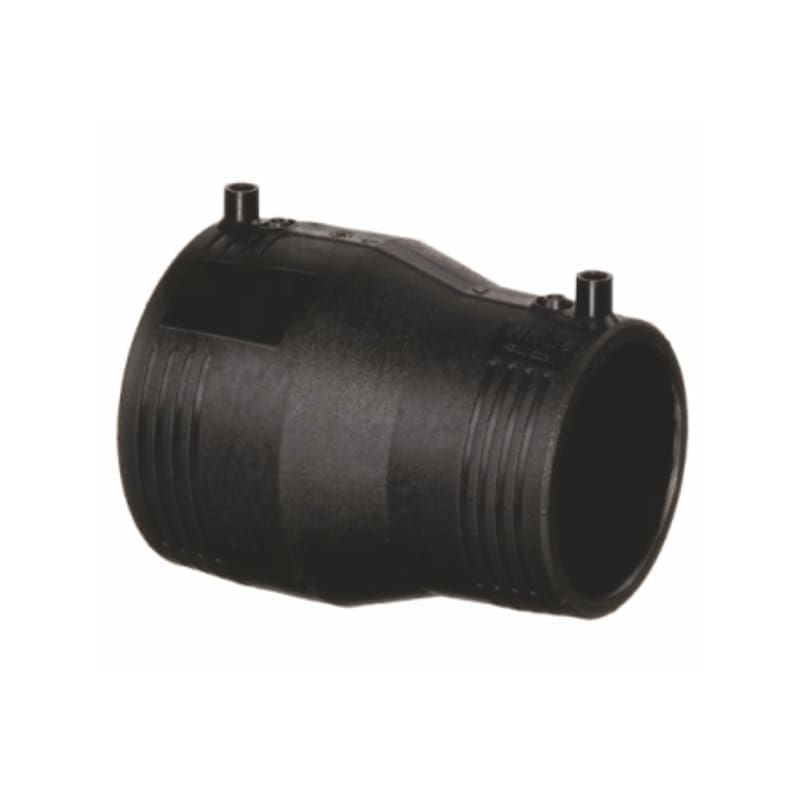

ELECTROFUSION REDUCER D.200/160 INJECTION MOLDED
for gas or water supply networks, installed buried in the ground. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for temperature of 20°C) -compliant with EN 1555-1:2011. ISO 4427-3. ISO 4437-3 -dimensions compliant with EN 12201-3:2011+A1:2012, EN 1555-3:2010+A1:2012 -manufacturing method: injection molding -electrofusion fitting resistance is embedded in the material -inner surfaces of the fittings have smooth surfaces, without striations -welding temperature between -10°C +45°C -welding voltage 40 V -4 mm connectors -limited displacement welding indicators - two welding zones Welding must be performed by authorized welders with appropriate equipment and in compliance with the welding procedure.
| UM colete | PIECE |
|---|---|
| Tip articol | REDUCTIONS |
| Material | HDPE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 1 |
| Diametru | 200 |
| Diametru(mm) | |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
