Efficient gas and water connections to polyethylene networks buried in the ground. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for a temperature of 20C) – with integrated cutter for drilling pressurized pipes -with clamp – 4 mm connectors – welding indicators with limited displacement -long outlet – threaded plug with sealing gasket Installation must be carried out according to the installation instructions by authorized personnel.

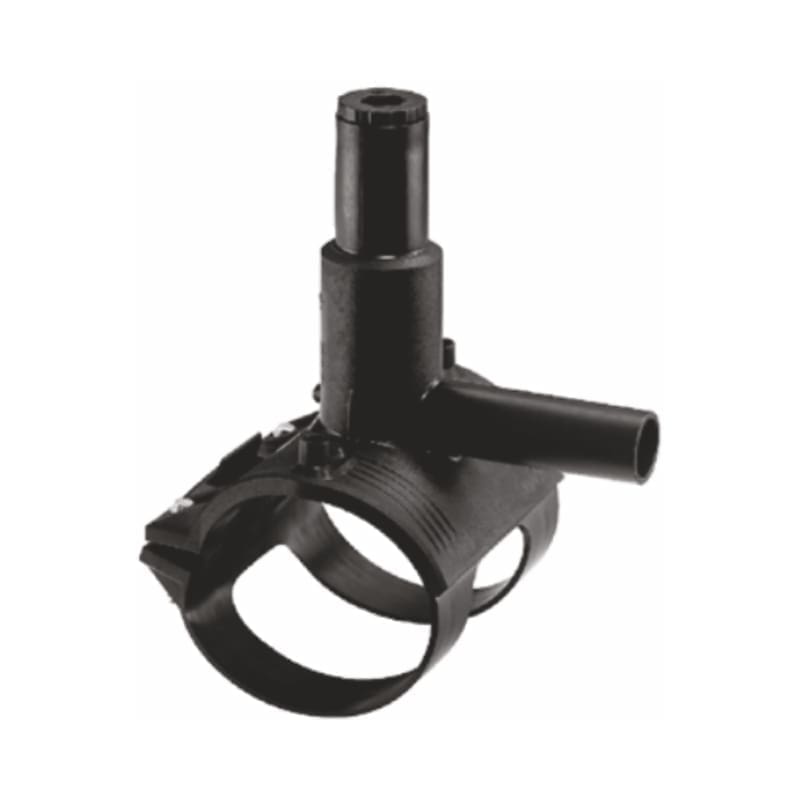

FIXED SADDLE TEE VALGasio GF D. 90×32 SDR11 WITH CLAMP
Efficient gas and water connections to polyethylene networks buried in soil. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for temperature of 20°C) - with integrated cutter for drilling pipes under pressure -with fastening clamp - 4 mm connectors - welding indicators with limited displacement -long outlet - threaded plug with sealing gasket Installation must be performed according to installation instructions by authorized personnel.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| SDR | 11 |
| Cantitate colet | 12 |
| Diametru | 90×32 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
