Efficient gas and water connections to polyethylene networks buried in the ground. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for a temperature of 20C) – with integrated cutter for drilling pressurized pipes -with clamp – 4 mm connectors – welding indicators with limited displacement -long outlet – threaded plug with sealing gasket Installation must be carried out according to the installation instructions by authorized personnel.

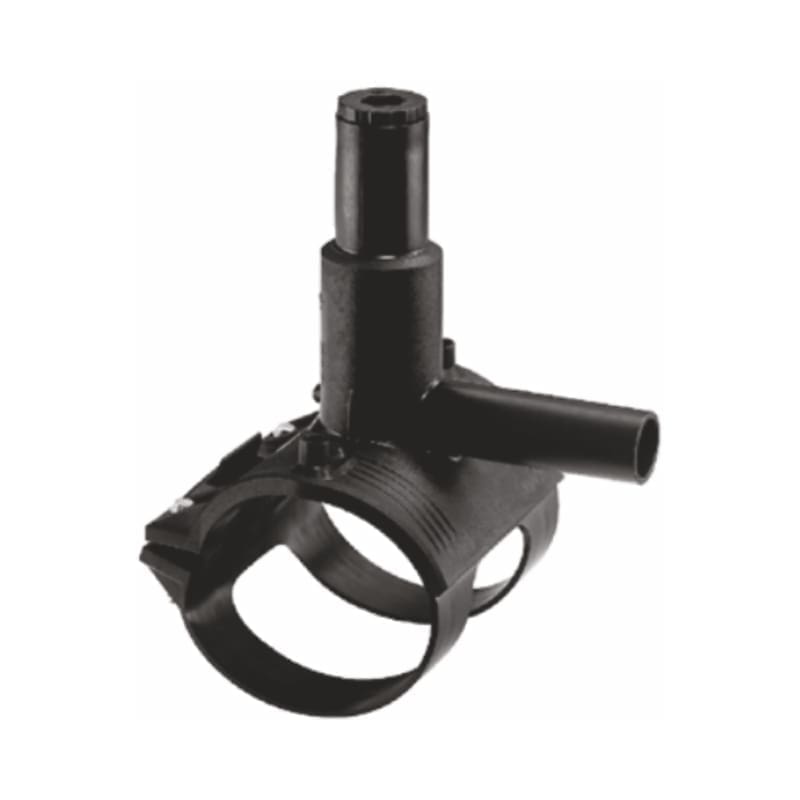

FIXED TAPPING SADDLE TEE VALGasio GF DN 63×25 SDR11 WITH CLAMP
Efficient gas and water connections for polyethylene networks buried in the ground. - Material: PE100, SDR 11 (ISO S5). - 10 bar gas / 16 bar water (calculated for 20°C) - With integrated cutter for drilling pipes under pressure - With clamping collar - 4 mm connectors - Welding indicators with limited displacement - Long outlet - Threaded plug with gasket for sealing. Installation must be carried out by authorized personnel in accordance with the installation instructions.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| SDR | 11 |
| Cantitate colet | 20 |
| Diametru | 63×25 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
