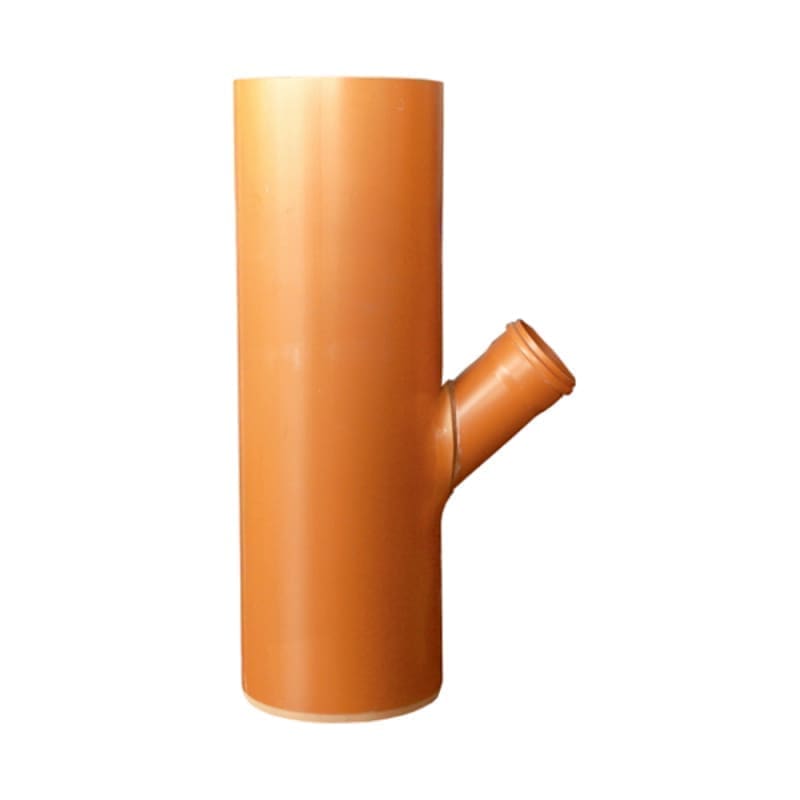

GEIGER BASE/PVC SIPHON VALPlast D.500 1OUT D.200 45° H2M
VALPlast gullies with siphon and sediment trap are utilized for collecting stormwater from roadways or other impermeable surfaces and discharging it into drainage networks, either in a combined or separate system for stormwater.
Material: PVC-U
Ring stiffness: 4 kN/m²
Standard heights: 1 m; 1.5 m; 2 m
Diameter: 500 mm
Outlet: 160 mm or 200 mm at 45°
Water seal: 52 mm for the 160 mm outlet version, and 48 mm for the 200 mm outlet version
Silt trap capacity: minimum 80 liters for the 160 mm outlet version, and minimum 76 liters for the 200 mm outlet version.
Cover element (not included):
– Grate mounted with a bedding plate or concrete ring.
Material: PVC-U
Ring stiffness: 4 kN/m²
Standard heights: 1 m; 1.5 m; 2 m
Diameter: 500 mm
Outlet: 160 mm or 200 mm at 45°
Water seal: 52 mm for the 160 mm outlet version, and 48 mm for the 200 mm outlet version
Silt trap capacity: minimum 80 liters for the 160 mm outlet version, and minimum 76 liters for the 200 mm outlet version.
Cover element (not included):
– Grate mounted with a bedding plate or concrete ring.
| Material | PVC |
|---|---|
| Fanta | 0 mm |
| Lungime | 0 m |
| Tip Valplast | GEIGER BASE/SIPHON 1 OUT |
| Cod CPV | CPV 44115210-4 |
| Unghi | 45 Grade |
| Diametru | 500 |
| Cod vamal | 39251000 |
| Subclasa | GEIGER CHAMBERS |
