These fittings are utilized in the construction of natural gas networks and drinking water supply systems, fabricated from high-density polyethylene pipes with SDR 11 thicknesses, compliant with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufactured by injection molding from PE100, the electrofusion fitting’s resistance is embedded in the material with dimensions corresponding to SDR 11 (ISO S8), in accordance with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage: 40 V. Connectors: 4 mm. Welding indicators with limited displacement. Integrated pipe clamping system. Welding must be performed by authorized welders using appropriate equipment and adhering to the specified welding procedure.

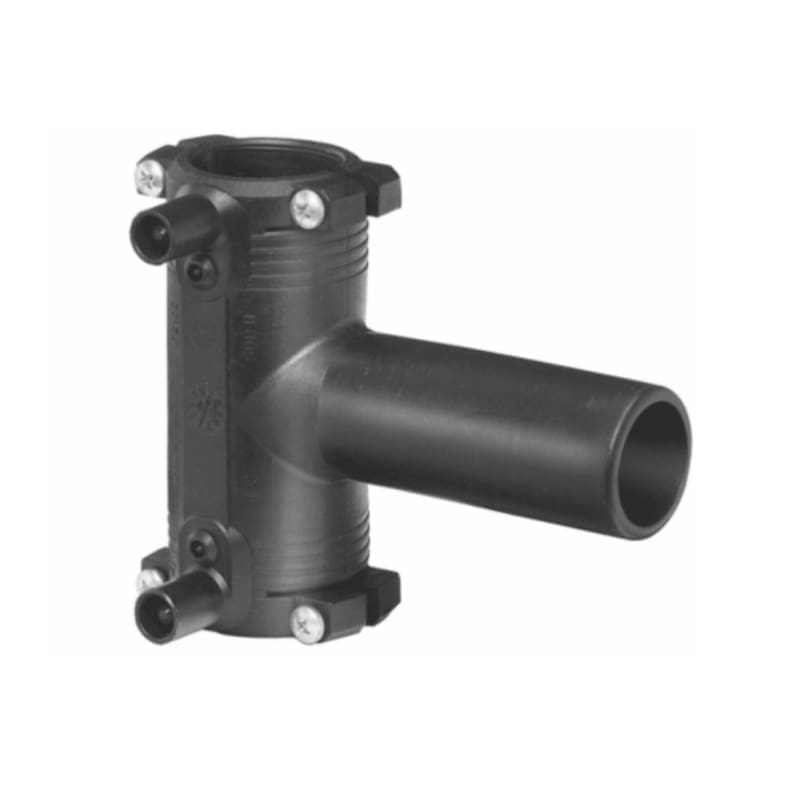

GF Electrofusion Tee D. 20
These fittings are utilized in the construction of natural gas networks and drinking water supply systems, fabricated from high-density polyethylene pipes with SDR 11 thicknesses, compliant with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufactured by injection molding from PE100, the electrofusion fitting's resistance is embedded in the material with dimensions corresponding to SDR 11 (ISO S8), in accordance with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage: 40 V. Connectors: 4 mm. Welding indicators with limited displacement. Integrated pipe clamping system. Welding must be performed by authorized welders using appropriate equipment and adhering to the specified welding procedure.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 10 |
| Diametru | 20 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
