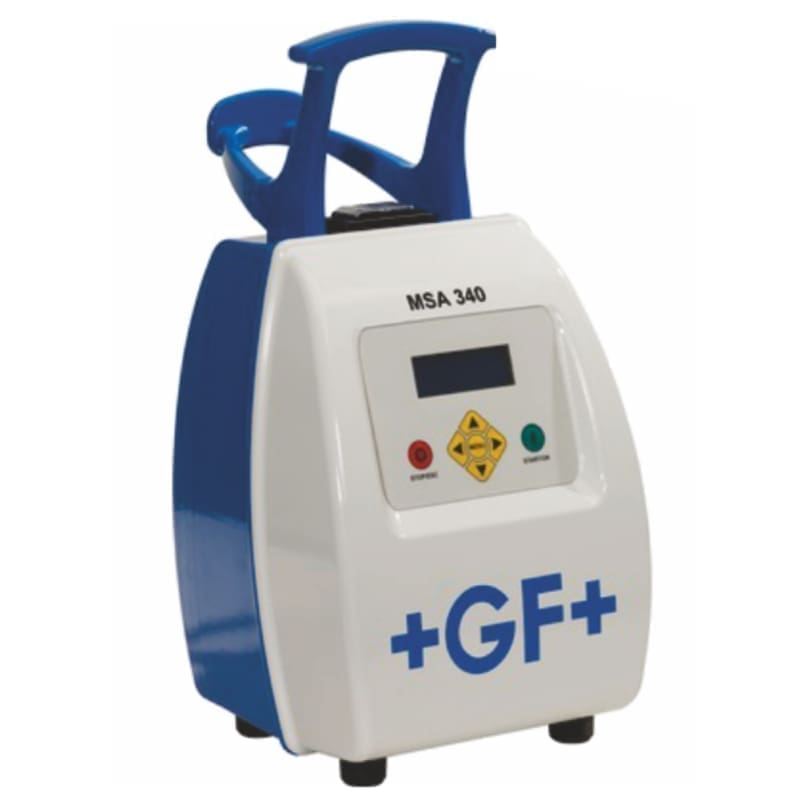

This high-performance unit provides all welding and
traceability data (ISO 12176), including
GPS coordinates for each weld. The internal memory has a capacity of
1000 weld records; for data transfer,
the unit is equipped with a USB interface. Records are
transferred in CSV or PDF format, which are easily managed with
common and free PC software applications. The intuitive operating
menu ensures a complete welding process. For
entering fusion data, the unit is equipped with a scanner.
The entire welding process is controlled and regulated, with
energy compensation based on ambient temperature and
cooling time. Features a robust aluminum casing with
conveniently wrapped cable and a handle for transport. The unit is suitable
for series connections. Delivery package includes: transport
case, scanner cover, 2 pairs of 4.0 mm
and 4.7 mm angle adapters, operating instructions, and
configuration diagram.
-Operating temperature: -10 °C to +45 °C
-Supply voltage: 230 V (190 V – 265 V)
-Supply frequency: 50 Hz (40 – 70 Hz)
-Welding voltage: 8-48 V
-Max. welding current: 110 A (max)
-Generator power: min. 3.5 kVA (5.0 kVA for fittings ≥ 200 mm)
-Protection: Class 1 / IP 65
-Power cable: 4 m
-Welding cable: 4 m
-USB interface: Type A
-Dimensions: 280 x 480 x 240 mm
-Weight: approx. 19 kg
-Display: LCD (20 alphanumeric characters x 4 lines), adjustable contrast
-Display languages: 11
