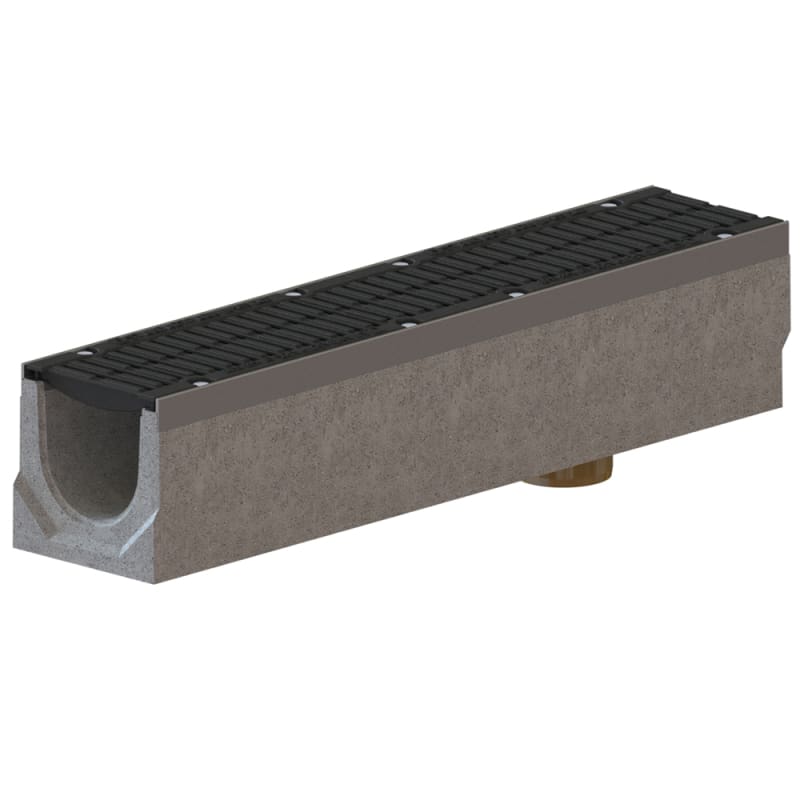

Fibro-concrete modular drains are ideal for collecting and draining water, including rainwater, from road surfaces, verges, and parking areas, for all types of road vehicles not exceeding 40 tonnes. They are installed embedded, up to the level of the grate’s upper surface, and secured by embedding the body in concrete.
Standard EN 1433;
Materials:
-Modular drain body: fibro-concrete: a material that is a mixture of cement, water, sand, crushed natural stone, glass fiber (waterproof glass fiber concrete);
-Drain grate: cast iron, resistance class D400
– Vertical outlet DN 110
Dimensions: 160 × 210 × 1000 mm
Weight: 58 kg
Optional accessories: END PIECE FOR FIBRO-CONCRETE MODULAR DRAIN “DRIVE” <(> <{{{wpml_tag_10}}}PluviKIT> 186×160 – code 80131186160
The drain features a 110 mm vertical connection, allowing it to be connected to a drainage line configured with drains code VLR 80101160210
Drains with galvanized steel edges must NOT be cut.
For the correct functioning and safety of stormwater drains (channels), they must be installed on a concrete bed and embedded in C30/35 resistance class concrete.
MODULAR DRAIN ”DRIVE” VALRainFIBROB. VERTICAL OUTLET DN 110 160x210x1000 GALVANIZED EDGES CAST IRON GRATE D400
Fibro-concrete modular drains are ideal for collecting and draining water, including rainwater, from road surfaces, verges, and parking areas, for all types of road vehicles not exceeding 40 tonnes. They are installed embedded, up to the level of the grate's upper surface, and secured by embedding the body in concrete. Standard EN 1433; Materials: -Modular drain body: fibro-concrete: a material that is a mixture of cement, water, sand, crushed natural stone, glass fiber (waterproof glass fiber concrete); -Drain grate: cast iron, resistance class D400 - Vertical outlet DN 110 Dimensions: 160 × 210 × 1000 mm Weight: 58 kg Optional accessories: END PIECE FOR FIBRO-CONCRETE MODULAR DRAIN "DRIVE" <(> <{{{wpml_tag_2}}}PluviKIT> 186x160 - code 80131186160The drain features a 110 mm vertical connection, allowing it to be connected to a drainage line configured with drains code VLR 80101160210Drains with galvanized steel edges must NOT be cut. For the correct functioning and safety of stormwater drains (channels), they must be installed on a concrete bed and embedded in C30/35 resistance class concrete.
| UM colete | PIECE |
|---|---|
| Tip articol | CHANNEL |
| Cod CPV | CPV 44167300-1 |
| Cantitate colet | 1 |
| Cod vamal | 39269050 |
| Subclasa | Stormwater Channels |
