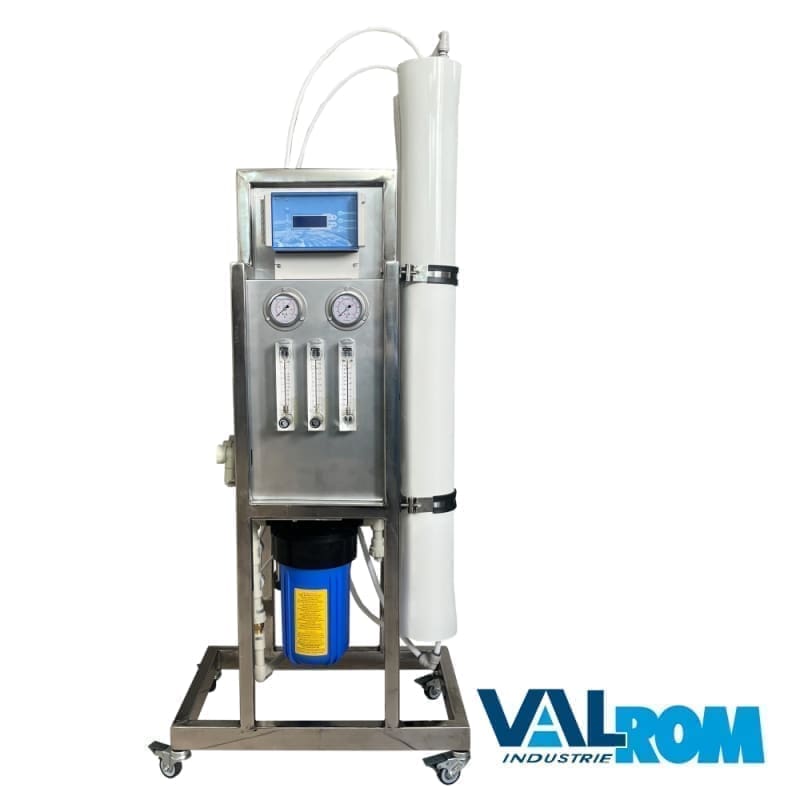

RO type reverse osmosis systems are water treatment equipment
that utilize a semi-permeable membrane to reduce ion and molecule concentrations
in water, suitable for domestic, process, and desalination applications
for water with medium or low salinity.
Components:
-2 membranes
-Pressure boosting pump
-High and low pressure transducer/switch
-Solenoid valves
-Multifunctional controller
-Sediment filter
-Flow regulators for recirculation and concentrate
-Vibration-resistant pressure gauges
-Conductivity sensor
-Stainless steel casing
Parameters:
-Flow rate: 0.5 m³/h* (*t=25 ºC, TDS 500 mg/l)
-Operating pressure: 2.0 – 4.0 bar
-Membrane operating pressure: 7.0 – 8.0 bar
-Water temperature: 5 – 45ºC
-pH: 3 – 10
-Power supply: 230 – 50 V – Hz ac
-Salt rejection: > 95%
-Power consumption: 0.67 kW
Inlet water quality requirements for reverse osmosis must
fall within the following limits:
-Hardness CaCO₃ <(><)> 0 mg/l
-Turbidity 1.0 NTU
-SDI 15 <(><)>5.0
5.0 <(><)>0.1 mg/l
-Mn <(><)>0.05 mg/l;
-Fe <(><)> 0.05 mg/l;
-TDS <(><)>1,000 mg/l
-Oils/Grease absent
-H₂S absent
-Silicates 20 mg/l
-TOC <(><)>5 mg/l
-COD CR15 mg/l
-BOD₅ <(><)>10 mg/l
-O₃ absent
Microbiologically pure water
Product dimensions: 1500 x 600 x 400 mm
Consumables:
1. Filter cartridge 10″ BB expanded PP 5 micron – AQUA07000110006
Replacement duration varies depending on inlet water quality
(approximately 3 months)
2. Reverse osmosis membrane XLP4040 – 87187014040
Replacement duration varies depending on inlet water quality
(approximately 10 – 12 months)
