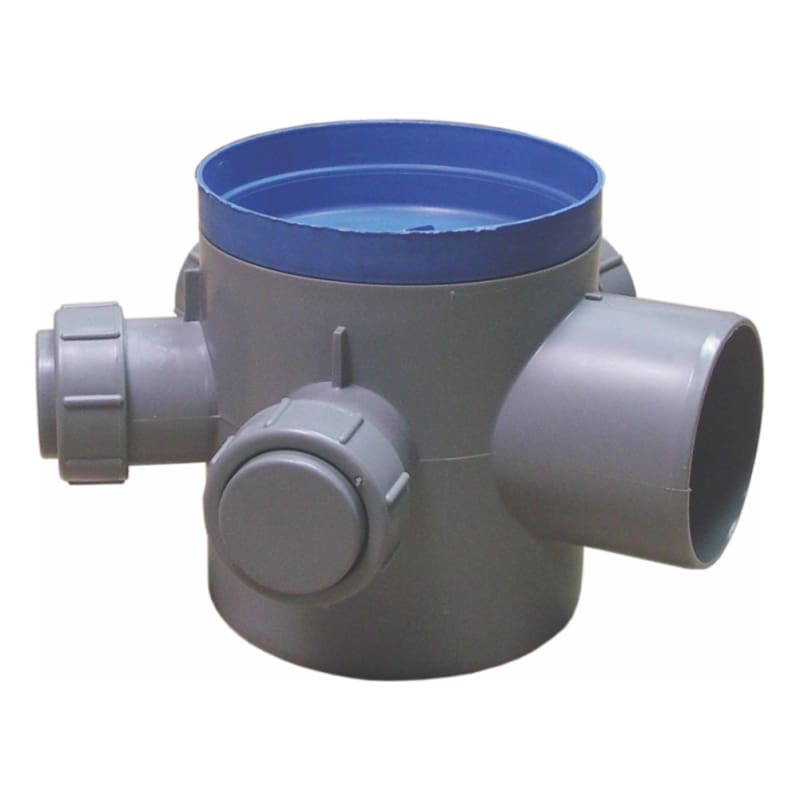

VALEasy Floor Drain Trap, Inspectable, 4-Inlet D. 40 – 1-Outlet D. 50, H=135

Name: VALEasy Floor Drain Trap, Inspectable, 4-Inlet D. 40 - 1-Outlet D. 50, H=135
Rating: 5 (1 reviews)

Floor-mounted drain traps collect water from the floor, with or without connecting other sanitary fixtures, featuring an outlet connection with a maximum diameter of 40 mm, and drain it into the sewage system. Depending on the choice of the upper part mounted at the finished floor level, it may or may not prevent foam/excess water from rising above the visible grate. This drain trap also allows for inspection of the sewage network while simultaneously preventing odors from the discharge pipe from entering the room, a factor considered during the design phase. -Material: Grey PP. -Components: drain trap body, 1 pc. elbow for siphoning with O-ring gasket, 2 pcs. plugs, 4 pcs. nuts, 4 pcs. conical sealing gaskets, blue protective cap. -Flow rate: 0.8 l/s. -Complies with EN 274. The product is supplied with an anti-contamination protective cap for installation. Installation must be performed by authorized personnel. Connection to the building’s sewage system is made by tightening onto the pipe with a nut-conical gasket. It is recommended to perform at least two cleanings per year, or as needed for proper drain trap operation.

SKU: 17105001200 Category: INTERNAL SEWER FITTINGS

Description Information Similar products

Floor-mounted drain traps collect water from the floor, with or without connecting other sanitary fixtures, featuring an outlet connection with a maximum diameter of 40 mm, and drain it into the sewage system. Depending on the choice of the upper part mounted at the finished floor level, it may or may not prevent foam/excess water from rising above the visible grate. This drain trap also allows for inspection of the sewage network while simultaneously preventing odors from the discharge pipe from entering the room, a factor considered during the design phase. -Material: Grey PP. -Components: drain trap body, 1 pc. elbow for siphoning with O-ring gasket, 2 pcs. plugs, 4 pcs. nuts, 4 pcs. conical sealing gaskets, blue protective cap. -Flow rate: 0.8 l/s. -Complies with EN 274. The product is supplied with an anti-contamination protective cap for installation. Installation must be performed by authorized personnel. Connection to the building's sewage system is made by tightening onto the pipe with a nut-conical gasket. It is recommended to perform at least two cleanings per year, or as needed for proper drain trap operation.
