For indoor cold and hot water supply installations, as follows: – Class 1 (hot water 60°C) – design temperature related to service life: 60°C/49 years + 80°C/1 year + 95°C/100 hours. – Class 2 (hot water 70°C) – design temperature related to service life: 70°C/49 years + 80°C/1 year + 95°C/100 hours.

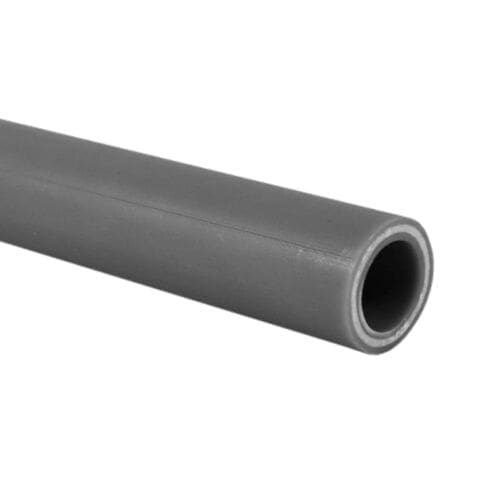

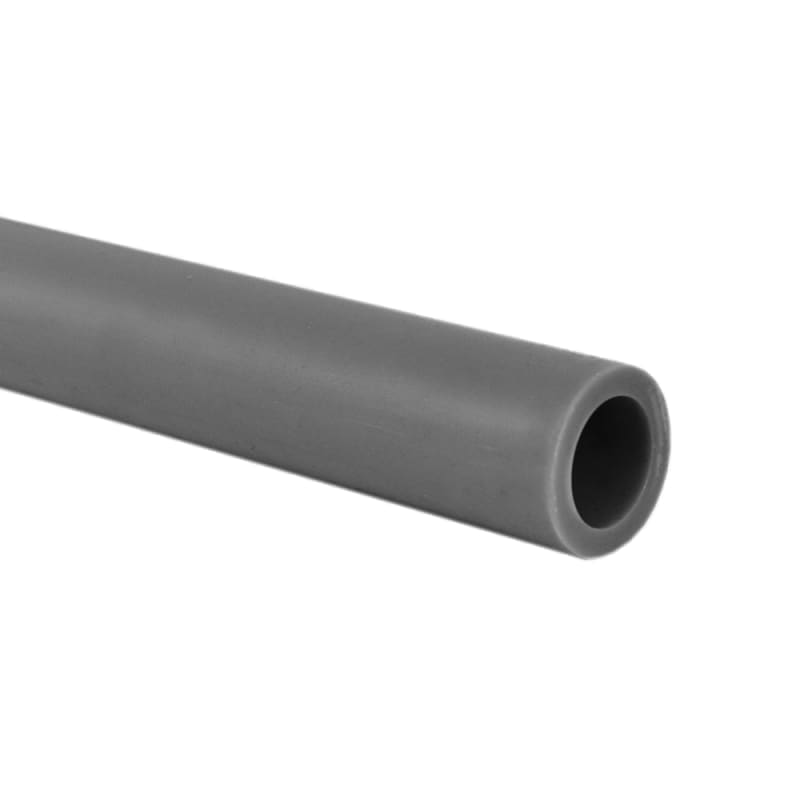

VALDuotherm GRAY PPR PIPE D. 90×12.3 mm SDR 7.4 L 4 m
VALDuotherm PP-R SDR 7.4 pipe is used for indoor cold and hot water supply installations, as follows:
- Class 1 - hot water 60°C - PN 8 bar; design temperature related to service life: 60°C/49 years + 80°C/1 year + 95°C/100 hours;
- Class 2 (hot water 70°C) - PN 6 bar; design temperature related to service life: 70°C/49 years + 80°C/1 year + 95°C/100 hours;
- cold water PN 16 bar at c = 1.5 and PN 20 bar at c = 1.25 (Informative - In accordance with ISO 15874-1 - the design pressure for sanitary cold water installations for a period of 50 years at a temperature of 20°C is 10 bar).
The linear expansion coefficient of single-layer PP-R pipes is α = 0.15 mm/m K, which is why, before wall mounting (surface mounting) PP-R pipes, the effect of pipe expansion or contraction must be assessed. Correct installation of clamps or other types of supports and correct positioning of expansion compensators prevents uncontrolled pipe movement due to temperature variations during installation and operation. As a rule, installation expansion is compensated between 2 fixed points by changing direction, an expansion loop, or where this is not possible, compensators must be fixed between the pipe and the structure. Fixing clamps (also called fixed points) of the installation are positioned near branches, valves, or wall penetrations, and sliding ones are mounted along the installation route at well-defined distances. This ensures installation alignment, support, and controlled axial movement. When installing PP-R pipes in screed or wall, they are installed in protective sleeves with a flexible structure, good insulation, and capable of absorbing pipe expansion. In the case of excessive expansion that is difficult to compensate via the protective insulating sleeve, an expansion compensator must be calculated and installed. Attention: pipes must be installed at an acceptable depth under the screed or inside the wall to avoid cracks; in addition, excessive internal stresses at joints must be avoided. The installation depth must be greater than or equal to 1.5 × the pipe’s outside diameter. Threaded joints are not permitted in screed or wall. The pressure test is performed before the pipe/installation is permanently embedded.
The technical manual covers methods for assessing expansion and ways to compensate for it, including clamp positioning.
- Class 1 - hot water 60°C - PN 8 bar; design temperature related to service life: 60°C/49 years + 80°C/1 year + 95°C/100 hours;
- Class 2 (hot water 70°C) - PN 6 bar; design temperature related to service life: 70°C/49 years + 80°C/1 year + 95°C/100 hours;
- cold water PN 16 bar at c = 1.5 and PN 20 bar at c = 1.25 (Informative - In accordance with ISO 15874-1 - the design pressure for sanitary cold water installations for a period of 50 years at a temperature of 20°C is 10 bar).
The linear expansion coefficient of single-layer PP-R pipes is α = 0.15 mm/m K, which is why, before wall mounting (surface mounting) PP-R pipes, the effect of pipe expansion or contraction must be assessed. Correct installation of clamps or other types of supports and correct positioning of expansion compensators prevents uncontrolled pipe movement due to temperature variations during installation and operation. As a rule, installation expansion is compensated between 2 fixed points by changing direction, an expansion loop, or where this is not possible, compensators must be fixed between the pipe and the structure. Fixing clamps (also called fixed points) of the installation are positioned near branches, valves, or wall penetrations, and sliding ones are mounted along the installation route at well-defined distances. This ensures installation alignment, support, and controlled axial movement. When installing PP-R pipes in screed or wall, they are installed in protective sleeves with a flexible structure, good insulation, and capable of absorbing pipe expansion. In the case of excessive expansion that is difficult to compensate via the protective insulating sleeve, an expansion compensator must be calculated and installed. Attention: pipes must be installed at an acceptable depth under the screed or inside the wall to avoid cracks; in addition, excessive internal stresses at joints must be avoided. The installation depth must be greater than or equal to 1.5 × the pipe’s outside diameter. Threaded joints are not permitted in screed or wall. The pressure test is performed before the pipe/installation is permanently embedded.
The technical manual covers methods for assessing expansion and ways to compensate for it, including clamp positioning.
| Ambalare | PLASTIC BAG |
|---|---|
| Culoare | GRI |
| Material | PPR |
| Tip articol | TEAVA |
| UM colete | BAG |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44115200-1 |
| Cantitate colet | 2 |
| Lungime | 4 m |
| SDR | 7,4 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 90 |
| Diametru(mm) | |
| Cod vamal | 39172210 |
| Subclasa | GRAY PPR PRESSURE PIPES |
