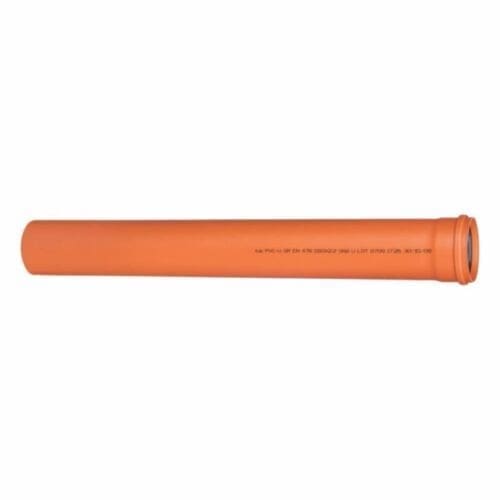

VALPlast compact wall (monolayer) PVC-U pipes are manufactured from unplasticized polyvinyl chloride and are used in municipal gravity sewer and drainage networks.

Product standard: SR EN 1401-1 Plastics piping systems for non-pressure underground drainage and sewerage. Unplasticized poly(vinyl chloride) (PVC-U). Specification for pipes, fittings and the system.

The pipes have a monolayer wall, made of homogeneous and compact PVC-U material.
The pipes are joined with socket and sealing gasket.

According to resistance class, the pipes are classified:
SN2 (SDR51) with min. ring stiffness 2kN/m2;
SN4 (SDR41) with min. ring stiffness 4kN/m2;
SN8 (SDR34) with min. ring stiffness 8kN/m2;
SN10 (SDR31) with min. ring stiffness 10kN/m2;
SN12 (SDR31) with min. ring stiffness 12kN/m2;
SN16 (SDR26) with min. ring stiffness 16kN/m2.

Tip articol	TUB
UM colete	BOX
Material	PVC
Fanta	0 mm
Unghi	0 Grade
Cod CPV	CPV 44163160-9

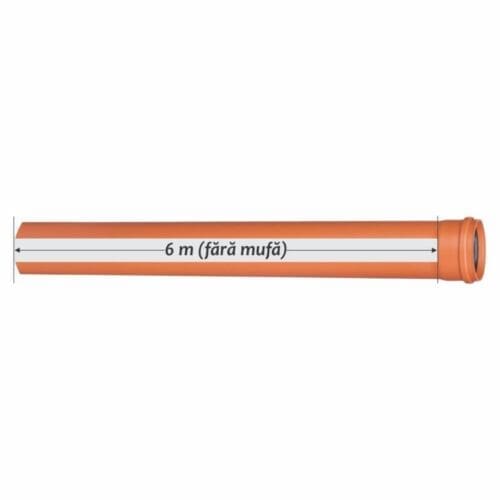

Lungime	6 m
Tip SN	8
Cantitate colet	60
Diametru	125
Cod vamal	39172310
Subclasa	PVC PIPES COMPACT PVC SEWER PIPE EXT D110-200
