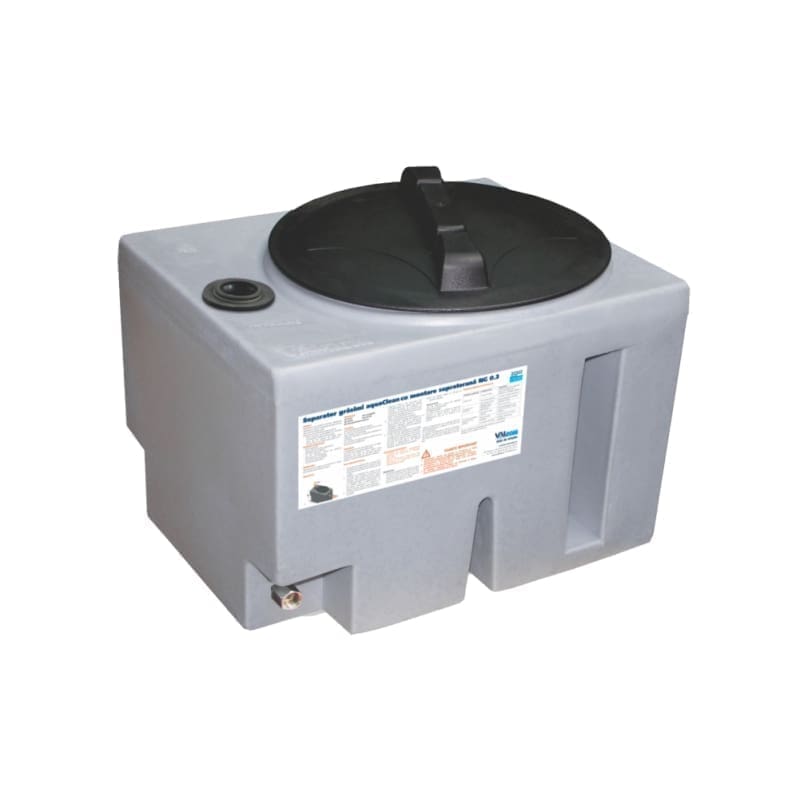

The separator is installed under the sink or next to the dishwasher with
a maximum flow rate of 0.3 L/s.
Technical data:
-total volume: 44 L
-overall dimensions (with lid) 470 × 375 × 305/380 mm
-access: 310 mm
-grease collection volume: 7 L
-sludge collection volume: 12 L
-sludge bag volume: 9.5 L
-weight: 6.6 kg
Components and materials:
-separator tank made of polyethylene (HDPE).
-DN 310 polypropylene (PP) lid with gasket.
-DN 40 inlet connection with gasket.
-single-use plastic fabric sludge collection bag (1
piece).
-DN 50 PP outlet connection and gasket sealing.
-1/2″ metal drain valve.
-1/2″ metal plug (positioned on the opposite side of the drain valve)
Consumables: sludge bag (9.5 L) code 48810000001
