Polyethylene to brass transition fitting. Material: PE100, SDR 11 (ISO S5); Brass CW617N.
– 10 bar gas / 16 bar water (calculated for 20°C)
– 4 mm connectors
– Limited displacement welding indicators
– Integrated pipe fixing system
Welding must be performed by authorized welders using appropriate equipment and devices, in compliance with the welding procedure.

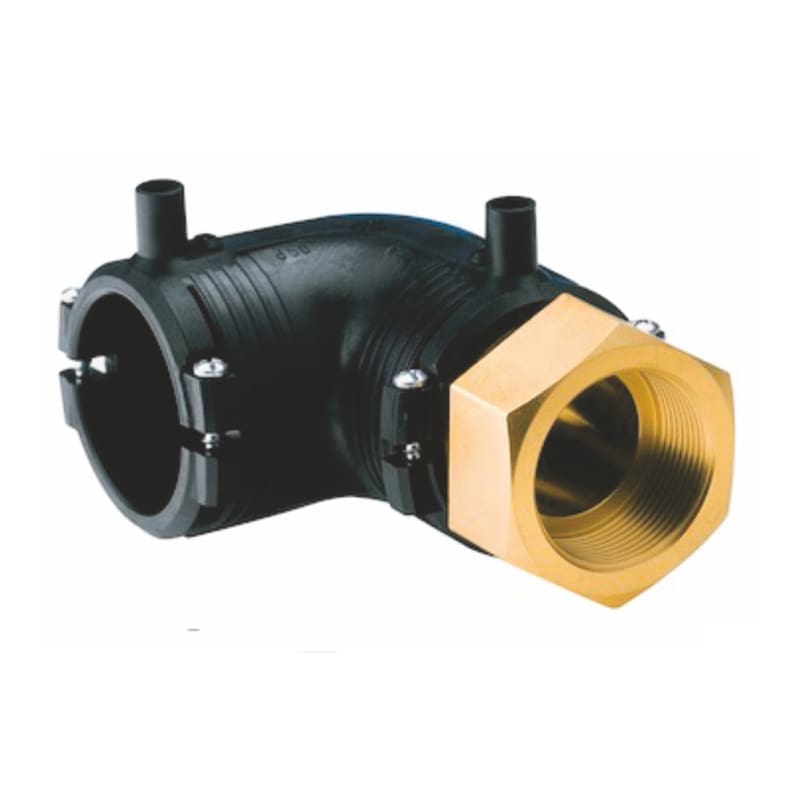

VALGasio 90° Electrofusion Elbow, PE/Brass Female Thread, D.63×2”FI, SDR11
Polyethylene to brass transition fitting. Material: PE100, SDR 11 (ISO S5); Brass CW617N.
- 10 bar gas / 16 bar water (calculated for 20°C)
- 4 mm connectors
- Limited displacement welding indicators
- Integrated pipe fixing system
Welding must be performed by authorized welders using appropriate equipment and devices, in compliance with the welding procedure.
| Material | ALAMA |
|---|---|
| Tip articol | TOC |
| UM colete | BOX |
| Filet | FI |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 6 |
| SDR | 11 |
| Diametru | 63×2" |
| Unghi | 90 Grade |
| Cod vamal | 74122000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
