For gas and water connections to buried polyethylene networks. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for 20°C). -Features a 360° swivel head (allowing connection in any direction due to the 360° rotating head). -Integrated cutter for drilling pipes under pressure. -Without clamping collar. -4 mm connectors. -Welding indicators with limited displacement. -Long outlet, supplied with electrofusion coupling or reducer. -Threaded plug with gasket for sealing. Installation must be performed by authorized personnel according to the installation instructions. The Top Load 630 device and angular adapters are required for installation.

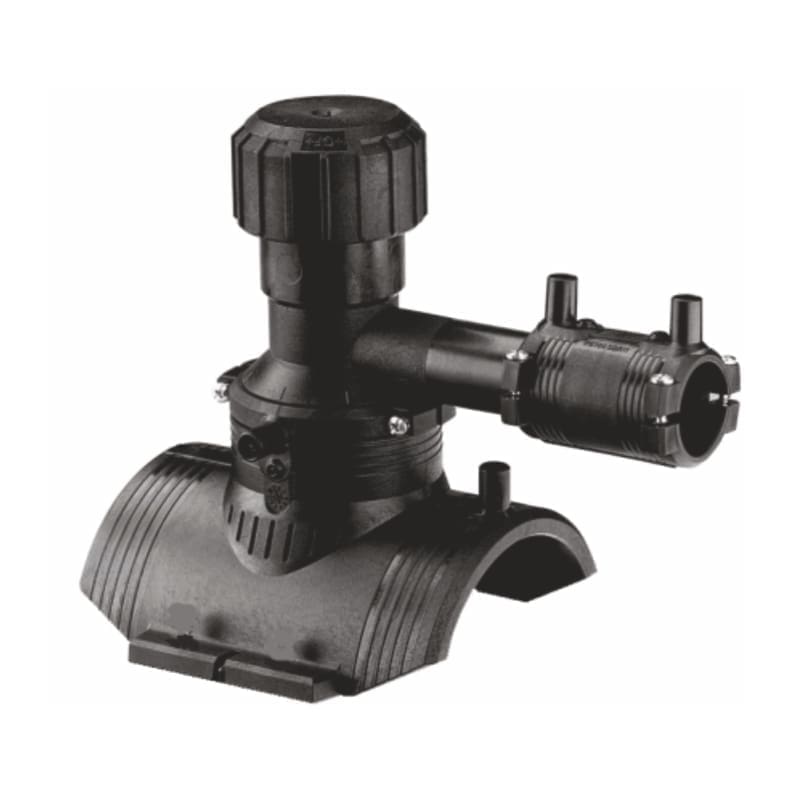

VALGasio GF 360° Swivel Tapping Saddle D.315-355×40 SDR11, Clamp-Free
For gas and water connections to buried polyethylene networks. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for 20°C). -Features a 360° swivel head (allowing connection in any direction due to the 360° rotating head). -Integrated cutter for drilling pipes under pressure. -Without clamping collar. -4 mm connectors. -Welding indicators with limited displacement. -Long outlet, supplied with electrofusion coupling or reducer. -Threaded plug with gasket for sealing. Installation must be performed by authorized personnel according to the installation instructions. The Top Load 630 device and angular adapters are required for installation.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 5 |
| SDR | 11 |
| Diametru | 315-355 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
