Efficient gas and water connections to polyethylene networks buried in the ground. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for a temperature of 20C) – with integrated cutter for drilling pressurized pipes -with clamp – 4 mm connectors – welding indicators with limited displacement -long outlet – threaded plug with sealing gasket Installation must be carried out according to the installation instructions by authorized personnel.

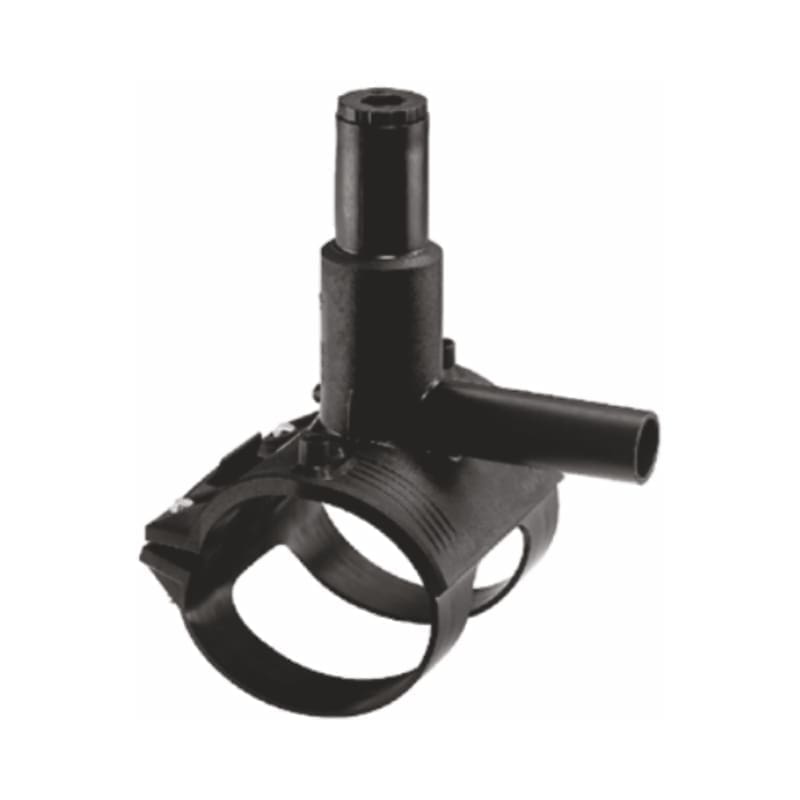

VALGasio GF Fixed Tapping Saddle Tee D.110×32 SDR11 with Clamp
Efficient gas and water connections for polyethylene networks buried underground. - Material: PE100, SDR 11 (ISO S5). - 10 bar gas / 16 bar water (calculated at 20°C). - Integrated cutter for drilling pipes under pressure. - With clamping collar. - 4 mm connectors. - Welding indicators with limited displacement. - Long outlet. - Threaded plug with gasket for sealing. Installation must be performed by authorized personnel according to the mounting instructions.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 9 |
| SDR | 11 |
| Diametru | 110X32 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
