Efficient gas and water connections to polyethylene networks buried in the ground. -Material: PE100, SDR 11 (ISO S5). -10 bar gas / 16 bar water (calculated for a temperature of 20C) – with integrated cutter for drilling pressurized pipes -with clamp – 4 mm connectors – welding indicators with limited displacement -long outlet – threaded plug with sealing gasket Installation must be carried out according to the installation instructions by authorized personnel.

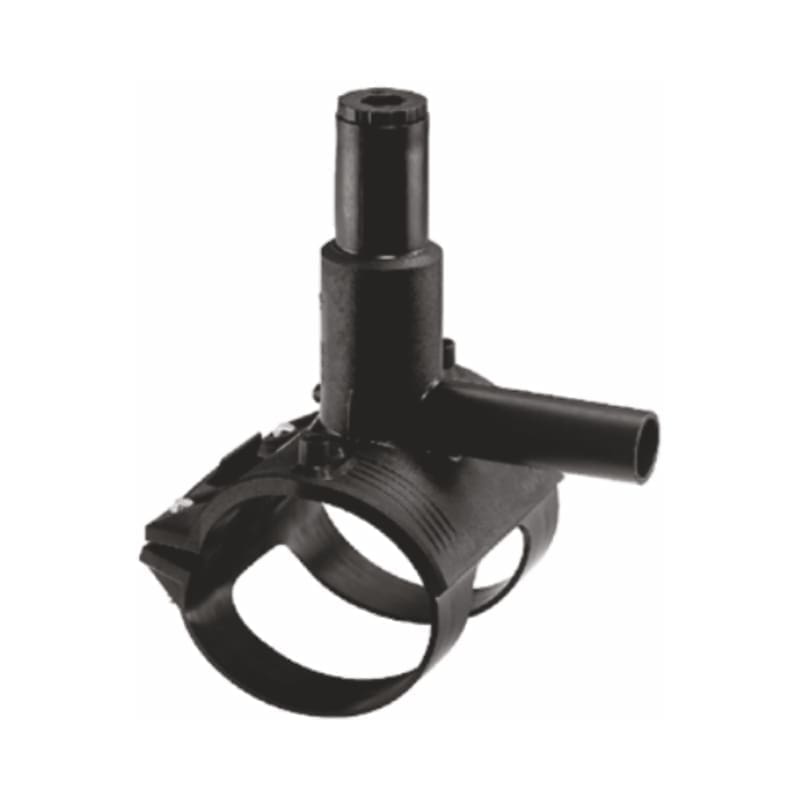

VALGasio GF Fixed Tapping Tee D.160×20 SDR11 with Clamp
Efficient gas and water connections for buried polyethylene networks.
- Material: PE100, SDR 11 (ISO S5).
- 10 bar gas / 16 bar water (calculated for 20°C).
- Integrated cutter for drilling pipes under pressure.
- With clamping collar.
- 4 mm connectors.
- Welding indicators with limited displacement.
- Long outlet.
- Threaded plug with gasket for sealing.
Installation must be performed according to mounting instructions by authorized personnel.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 6 |
| SDR | 11 |
| Diametru | 160X20 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
