PE100 SDR11 (GasKIT) pipes are utilized in external natural gas distribution networks with a maximum operating pressure (MOP) of 10 bar (reference temperature 20°C). The pipes are installed underground. The pipes are manufactured from high-density polyethylene, type PE100. The raw material is a homogeneous mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers. The pipes are black with co-extruded longitudinal yellow stripes. The average outer diameters, deviation from circularity (ovality), and pipe tolerances comply with SR EN 1555-2:2011. The wall thickness and thickness tolerances of the pipes meet the requirements of SR EN 1555-2:2011.
VALGasio PE100 Pipe D.180×16.4mm SDR11, 13m Bar

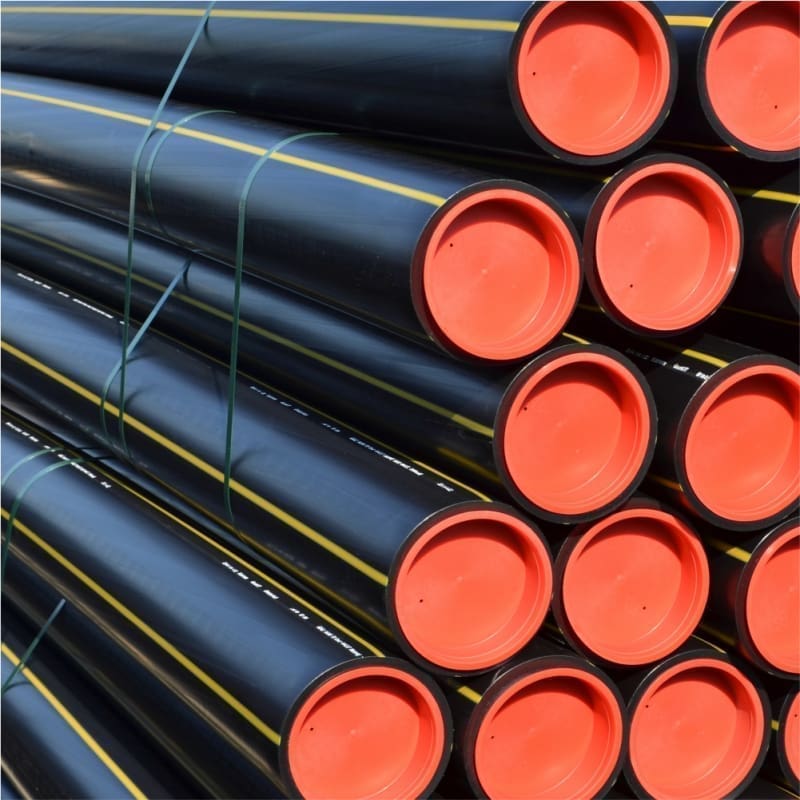

PE100 SDR11 (GasKIT) pipes are utilized in external natural gas distribution networks with a maximum operating pressure (MOP) of 10 bar (reference temperature 20°C). The pipes are installed underground. The pipes are manufactured from high-density polyethylene, type PE100. The raw material is a homogeneous mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers. The pipes are black with co-extruded longitudinal yellow stripes. The average outer diameters, deviation from circularity (ovality), and pipe tolerances comply with SR EN 1555-2:2011. The wall thickness and thickness tolerances of the pipes meet the requirements of SR EN 1555-2:2011.
| Material | PE100 |
|---|---|
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163100-1 |
| Cantitate colet | 1 |
| SDR | 11 |
| Lungime | 13 m |
| Grosime | 16.4 mm |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 180 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
| Subclasa | PEHD GAS PIPES D125-315 |
