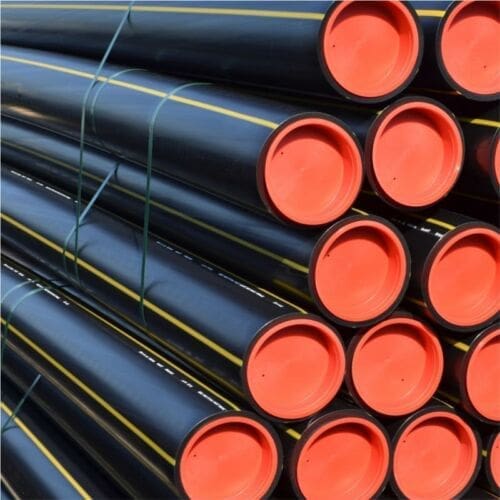

PE100 SDR11 pipes (GasKIT) are used in external natural gas distribution networks with a maximum operating pressure (MOP) of 10 bar (reference temperature 20°C). The pipes are installed underground. The pipes are made of high-density polyethylene, PE100 type. The raw material is a homogeneous blend of polyethylene, antioxidants, pigments, and UV stabilizers. The pipes are black and have yellow longitudinal co-extruded stripes. The average outside diameters, deviation from circularity (ovality), and pipe tolerances comply with SR EN 1555-2:2011. The wall thickness and wall thickness tolerances of the pipes meet the requirements of SR EN 1555-2:2011.
VALGasio PE100 PIPE D.32X3.0mm SDR11 COIL 200M
PE100 SDR11 (GasKIT) pipes are used in external natural gas distribution networks with a maximum operating pressure (MOP) of 10 bar (reference temperature 20°C). The pipes are installed underground. They are manufactured from PE100 high-density polyethylene. The raw material is a homogeneous mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers. The pipes are black with co-extruded yellow longitudinal stripes. Average outer diameters, deviation from circularity (ovality), and pipe tolerances comply with SR EN 1555-2:2011. The wall thickness and wall thickness tolerances of the pipes meet the requirements of SR EN 1555-2:2011.
| Material | PE100 |
|---|---|
| Tip articol | TUB |
| UM colete | ROLL |
| Ambalare | COLAC / BARS TO GO |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163100-1 |
| Cantitate colet | 1 |
| SDR | 11 |
| Diametru | 32 |
| Diametru(mm) | |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Lungime | 200 m |
| Cod vamal | 39172110 |
| Subclasa | HDPE GAS PIPES D20-40 |
