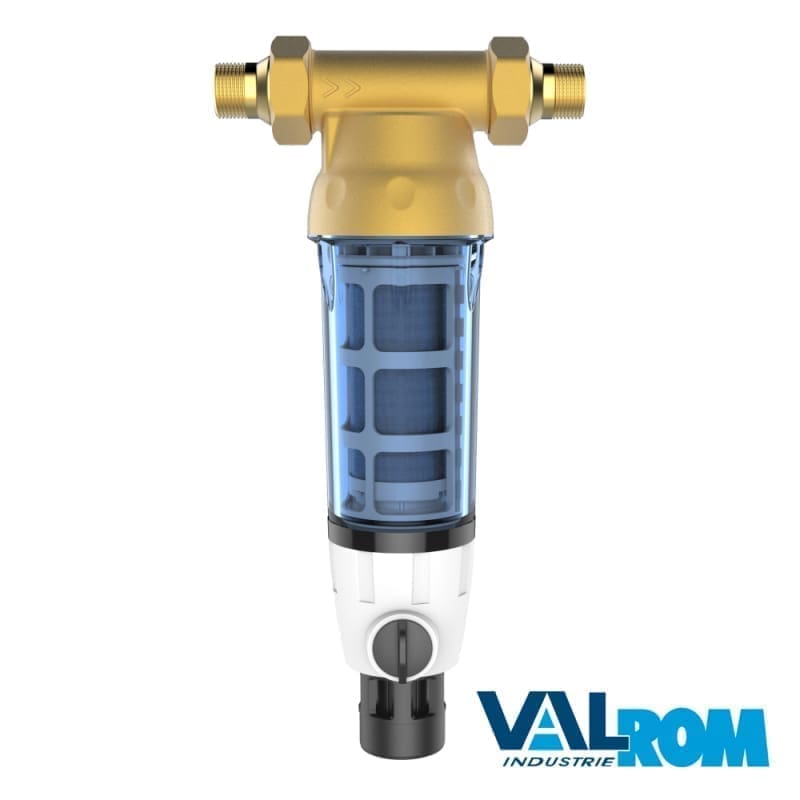

This filter is used in domestic/residential applications for filtering drinking water. It is installed at the water inlet point of the
premises. A particular feature of these filters is that they allow for the removal of particles during purging, and at the same time, the
cartridge and the inside of the housing can be cleaned without needing to shut off the water supply or disassemble the filter. A part of the
housing is movable and actuates the cleaning piece, which, by rotating left and right, cleans the cartridge and the inside of the housing.
Operating parameters:
oMaximum pressure: 10 bar
oWater temperature: 5 – 40 C
Characteristics:
oHousing material: plastic
oCap material: brass
oConnection: CW 617N brass
oSealing: EPDM O-ring
oFilter cartridge: stainless steel
Usage:
oUsed for mechanical water filtration, with a filtration degree of 90 microns, recommended for water from municipal
supply networks.
oThe filter is mounted at the water inlet point of the premises.
oPurging is required after installation by actuating the purge valve.
oDuring purging, rotate the base of the filter 3-4 turns of 360 degrees clockwise to remove
large particles, then rotate 3-4 turns of 360 degrees counter-clockwise to clean the surface of the cartridge and
the filter housing.
Attention!
oRecommended ONLY for cold water supply circuits.
oDesigned to be installed in areas protected from frost and high temperatures.
