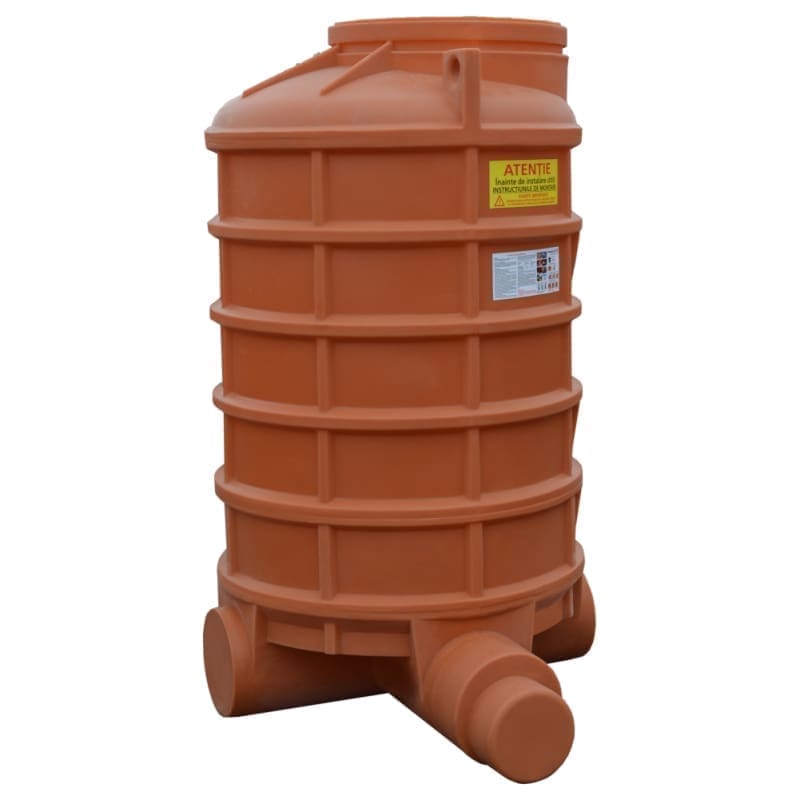

VALPlast INSPECTION CHAMBER 1IN 1OUT D.200/160 H=1830mm
VALPlast PE inspection chambers are utilized in external sewage networks for municipal wastewater and stormwater, operating with gravity flow and a free surface.
Product Standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the rotational molding process.
They have a cylindrical shape with reinforcements and adjustments that ensure the chamber's structural integrity.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640mm. The nominal outer diameter of the inspection chamber is 1100mm.
Accessories for inspection chambers (not included, can be ordered separately):
– Sealing gasket 640mm for inspection chamber (47901000116)
– Extension with H=100-300mm (47901000213) or with H=100-600mm (47901000216) for inspection chamber. Important: Only one extension can be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with outer D 700mm (47901000008) or with outer D 800mm (47901000006) – select the appropriate cover depending on the situation (chamber with/without extension).
Product Standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the rotational molding process.
They have a cylindrical shape with reinforcements and adjustments that ensure the chamber's structural integrity.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640mm. The nominal outer diameter of the inspection chamber is 1100mm.
Accessories for inspection chambers (not included, can be ordered separately):
– Sealing gasket 640mm for inspection chamber (47901000116)
– Extension with H=100-300mm (47901000213) or with H=100-600mm (47901000216) for inspection chamber. Important: Only one extension can be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with outer D 700mm (47901000008) or with outer D 800mm (47901000006) – select the appropriate cover depending on the situation (chamber with/without extension).
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Diametru | 200 |
| Inaltime | 1830 |
| Cod vamal | 39251000 |
| Subclasa | INSPECTION CHAMBERS |
