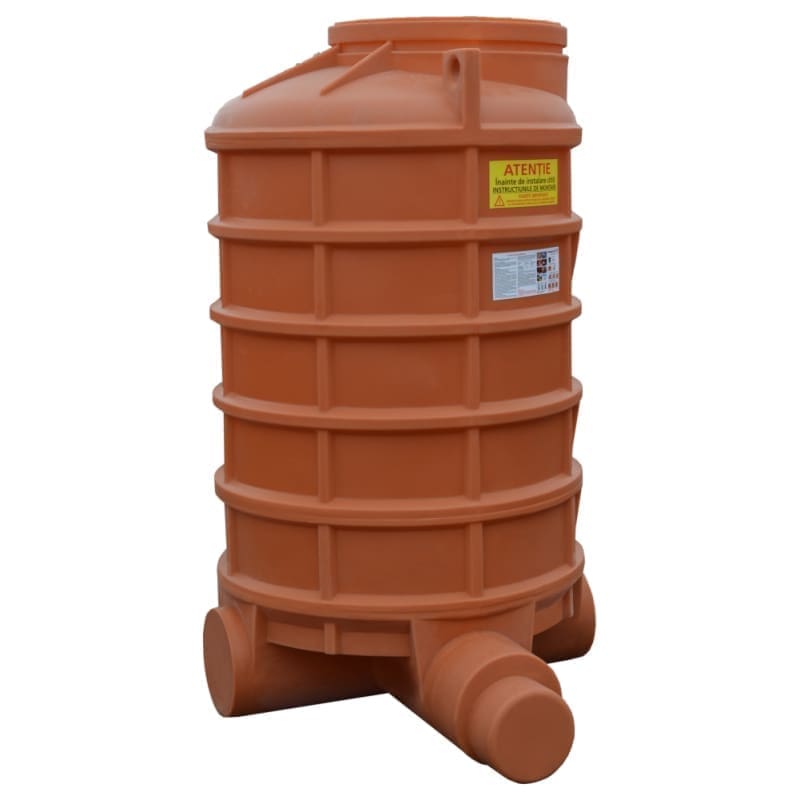

VALPlast Inspection Chamber 1 Inlet 1 Outlet D.315/250 H=1730mm
VALPlast PE inspection chambers are utilized in external sewage networks for wastewater and stormwater in localities, featuring gravity flow with a free surface.
Product Standard: Company Technical Standard STF.
The chambers are manufactured from PE polyethylene using the rotational molding process.
They have a cylindrical shape with reinforcements and adjustments that ensure the structural integrity of the chamber.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640mm. The nominal outer diameter of the inspection chamber is 1100mm.
Accessories for inspection chambers (not included, can be ordered separately):
– Sealing gasket 640mm for inspection chamber (47901000116)
– Extension with H=100-300mm (47901000213) or with H=100-600mm (47901000216) for inspection chamber. Important: No more than one extension can be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protection cover with Dext 700mm (47901000008) or with Dext 800mm (47901000006) – the appropriate cover is selected depending on the situation (chamber with/without extension).
Product Standard: Company Technical Standard STF.
The chambers are manufactured from PE polyethylene using the rotational molding process.
They have a cylindrical shape with reinforcements and adjustments that ensure the structural integrity of the chamber.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640mm. The nominal outer diameter of the inspection chamber is 1100mm.
Accessories for inspection chambers (not included, can be ordered separately):
– Sealing gasket 640mm for inspection chamber (47901000116)
– Extension with H=100-300mm (47901000213) or with H=100-600mm (47901000216) for inspection chamber. Important: No more than one extension can be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protection cover with Dext 700mm (47901000008) or with Dext 800mm (47901000006) – the appropriate cover is selected depending on the situation (chamber with/without extension).
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Diametru | 315/250 |
| Inaltime | 1730 |
| Cod vamal | 39251000 |
| Subclasa | INSPECTION CHAMBERS |
