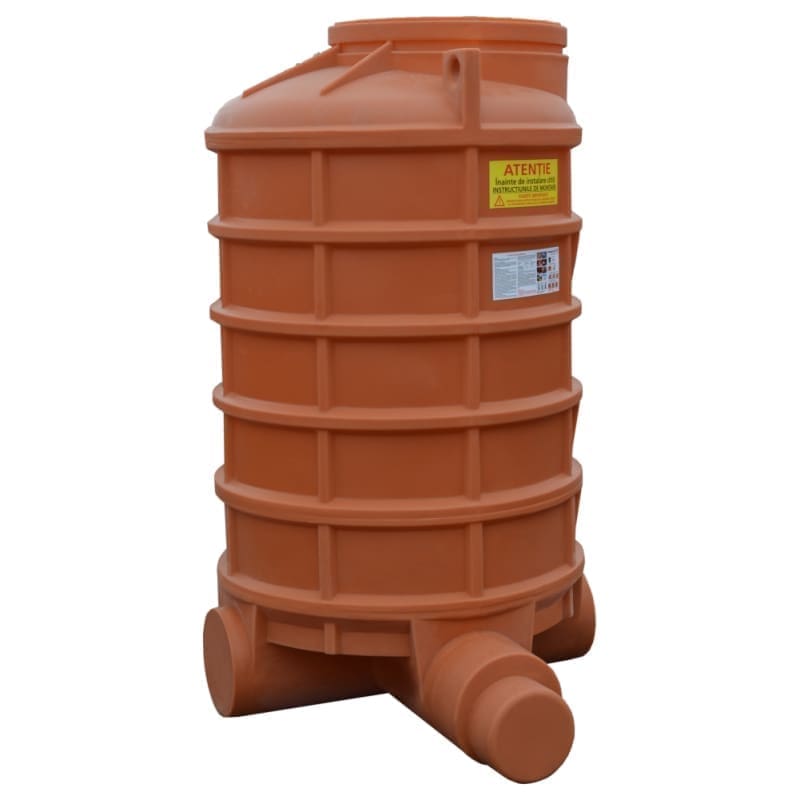

VALPlast Inspection Manhole 1 Inlet 1 Outlet D.200/160 H=1580
VALPlast PE inspection manholes are utilized in external wastewater and stormwater networks within localities, for gravity flow with a free surface.
Product Standard: Company Technical Standard STF.
The manholes are manufactured from PE polyethylene using the rotational molding process.
They feature a cylindrical shape with reinforcements and adjustments that ensure the manhole's structural integrity.
Access to the manhole is facilitated by profiled steps integrated into the manhole wall. The access diameter to the manhole is 640mm. The nominal outer diameter of the inspection manhole is 1100mm.
Accessories for inspection manholes (not included, can be ordered separately):
– Sealing gasket 640mm for inspection manhole (47901000116)
– Extension with H=100-300mm (47901000213) or with H=100-600mm (47901000216) for inspection manhole. Important: Only one extension can be used.
– Metal part for fixing the manhole extension (47901000125)
– PE protective cover with Dext 700mm (47901000008) or with Dext 800mm (47901000006) – the appropriate cover is selected based on the situation (manhole with/without extension).
Product Standard: Company Technical Standard STF.
The manholes are manufactured from PE polyethylene using the rotational molding process.
They feature a cylindrical shape with reinforcements and adjustments that ensure the manhole's structural integrity.
Access to the manhole is facilitated by profiled steps integrated into the manhole wall. The access diameter to the manhole is 640mm. The nominal outer diameter of the inspection manhole is 1100mm.
Accessories for inspection manholes (not included, can be ordered separately):
– Sealing gasket 640mm for inspection manhole (47901000116)
– Extension with H=100-300mm (47901000213) or with H=100-600mm (47901000216) for inspection manhole. Important: Only one extension can be used.
– Metal part for fixing the manhole extension (47901000125)
– PE protective cover with Dext 700mm (47901000008) or with Dext 800mm (47901000006) – the appropriate cover is selected based on the situation (manhole with/without extension).
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Diametru | 200 |
| Inaltime | 1580 |
| Cod vamal | 39251000 |
| Subclasa | INSPECTION CHAMBERS |
