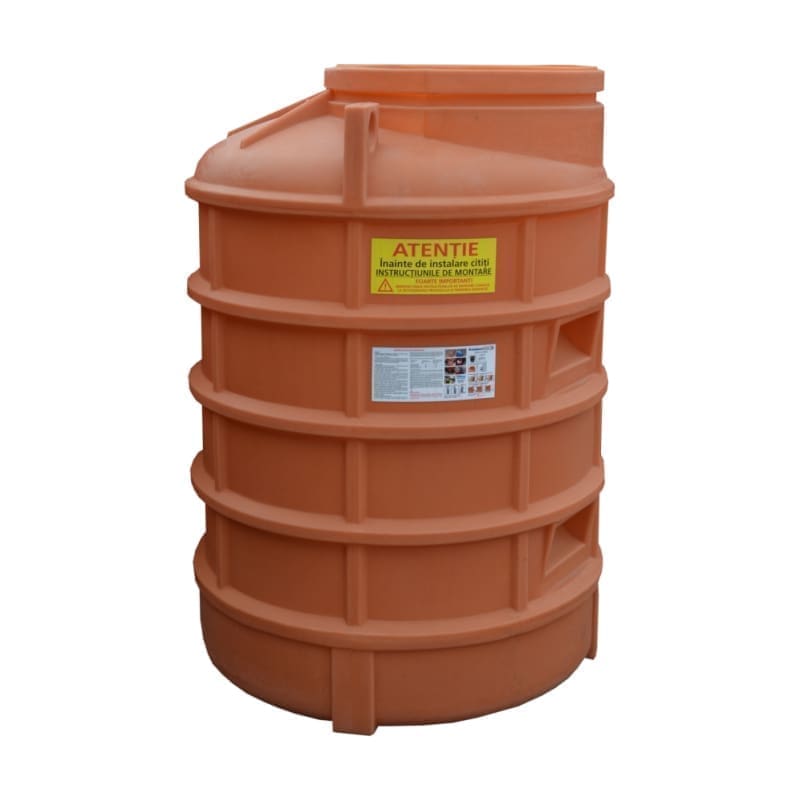

VALPlast Inspection Chamber, Closed Base, H=2580 mm
VALPlast PE inspection chambers are utilized in external sewage networks for wastewater and stormwater in localities, operating with gravity flow and free surface.
Product Standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the "rotomolding" rotational molding process.
They feature a cylindrical shape with reinforcements and adjustments that ensure the structural integrity of the chamber.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640 mm. The nominal outer diameter of the inspection chamber is 1100 mm.
Accessories for inspection chambers (not included, can be ordered separately):
– Sealing gasket 640 mm for inspection chamber (47901000116)
– Extension with H=100-300 mm (47901000213) or with H=100-600 mm (47901000216) for inspection chamber. Important: Only one extension can be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with outer diameter 700 mm (47901000008) or with outer diameter 800 mm (47901000006) – the appropriate cover is selected based on the situation (chamber with/without extension).
Product Standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the "rotomolding" rotational molding process.
They feature a cylindrical shape with reinforcements and adjustments that ensure the structural integrity of the chamber.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640 mm. The nominal outer diameter of the inspection chamber is 1100 mm.
Accessories for inspection chambers (not included, can be ordered separately):
– Sealing gasket 640 mm for inspection chamber (47901000116)
– Extension with H=100-300 mm (47901000213) or with H=100-600 mm (47901000216) for inspection chamber. Important: Only one extension can be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with outer diameter 700 mm (47901000008) or with outer diameter 800 mm (47901000006) – the appropriate cover is selected based on the situation (chamber with/without extension).
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Inaltime | 2580 |
| Cod vamal | 39251000 |
| Subclasa | OUTDOOR SEWAGE VISITING CABINS |
