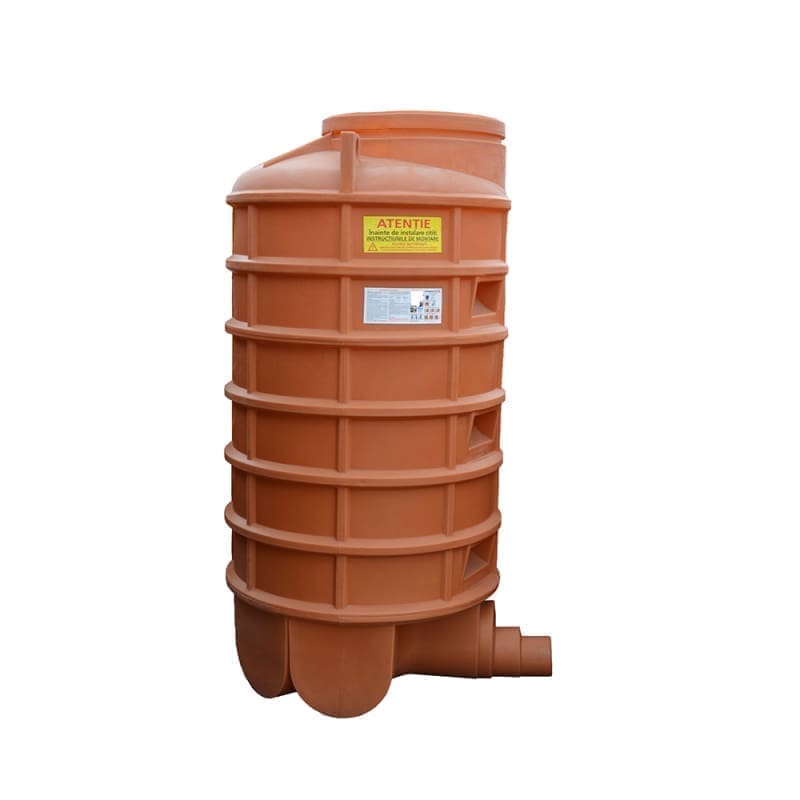

VALPlast INSPECTION CHAMBER 5 ZONES IN 250/200/160 1OUT 315/250 H=1525
VALPlast PE inspection chambers are utilized in external sewerage networks for wastewater and stormwater in localities, featuring gravity flow with a free surface.
Product standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the rotational molding process.
They have a cylindrical shape with reinforcements and adjustments that ensure the structural integrity of the chamber.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640mm. The nominal outer diameter of the inspection chamber is 1100mm.
Accessories for inspection chambers (not included, can be ordered separately):
– 640 mm sealing gasket for inspection chamber (47901000116)
– Extension with H=100–300 mm (47901000213) or with H=100–600 mm (47901000216) for inspection chamber. Important: More than one extension cannot be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with Dext 700 mm (47901000008) or Dext 800 mm (47901000006) – select the appropriate cover depending on the situation (chamber with/without extension).
Product standard: Company Technical Standard (STF).
The chambers are manufactured from PE polyethylene using the rotational molding process.
They have a cylindrical shape with reinforcements and adjustments that ensure the structural integrity of the chamber.
Access to the chamber is provided by profiled steps integrated into the chamber wall. The access diameter to the chamber is 640mm. The nominal outer diameter of the inspection chamber is 1100mm.
Accessories for inspection chambers (not included, can be ordered separately):
– 640 mm sealing gasket for inspection chamber (47901000116)
– Extension with H=100–300 mm (47901000213) or with H=100–600 mm (47901000216) for inspection chamber. Important: More than one extension cannot be used.
– Metal part for fixing the chamber extension (47901000125)
– PE protective cover with Dext 700 mm (47901000008) or Dext 800 mm (47901000006) – select the appropriate cover depending on the situation (chamber with/without extension).
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Diametru | 315/250 |
| Inaltime | 1525 |
| Cod vamal | 39251000 |
| Subclasa | INSPECTION CHAMBERS |
