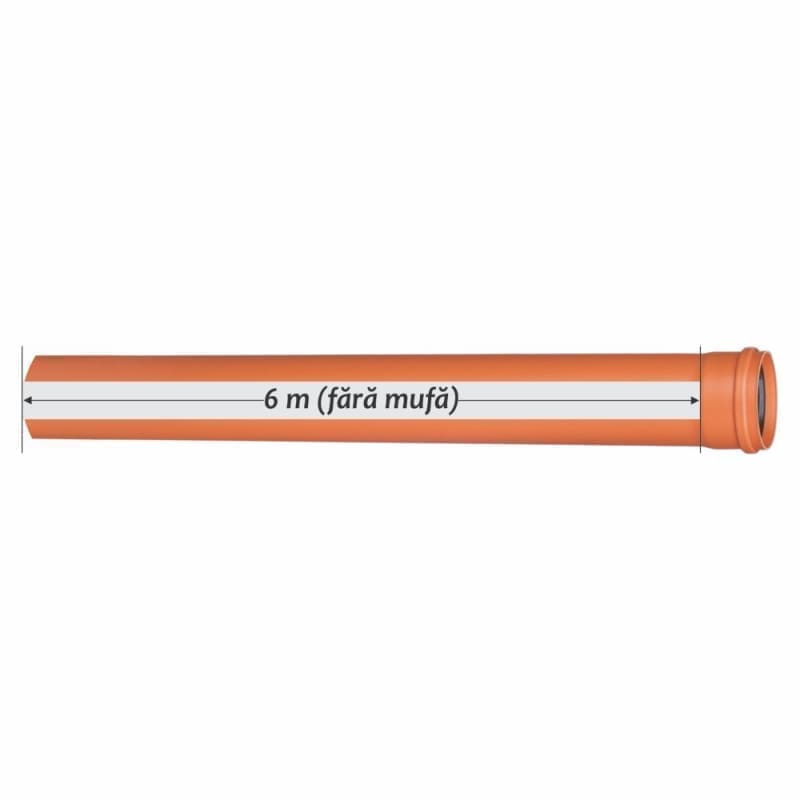

VALPlast Compact PVC Pipe D.160×4.7mm SN8, 6m
VALPlast compact (monolayer) PVC-U pipes are manufactured from unplasticized polyvinyl chloride and are used in municipal gravity sewerage and drainage networks.
Product Standard: SR EN 1401-1 Buried plastic piping systems for non-pressure drainage and sewerage. Unplasticized polyvinyl chloride (PVC-U). Specifications for pipes, fittings, and the system.
The pipes feature a single-layer, homogeneous, and compact PVC-U wall.
The pipes are joined with a socket and sealing gasket.
Depending on the resistance class, pipes are classified as follows:
SN2 (SDR51) with a minimum ring stiffness of 2kN/m²;
SN4 (SDR41) with a minimum ring stiffness of 4kN/m²;
SN8 (SDR34) with a minimum ring stiffness of 8kN/m²;
SN10 (SDR31) with a minimum ring stiffness of 10kN/m²;
SN12 (SDR31) with a minimum ring stiffness of 12kN/m²;
SN16 (SDR26) with a minimum ring stiffness of 16kN/m².
Product Standard: SR EN 1401-1 Buried plastic piping systems for non-pressure drainage and sewerage. Unplasticized polyvinyl chloride (PVC-U). Specifications for pipes, fittings, and the system.
The pipes feature a single-layer, homogeneous, and compact PVC-U wall.
The pipes are joined with a socket and sealing gasket.
Depending on the resistance class, pipes are classified as follows:
SN2 (SDR51) with a minimum ring stiffness of 2kN/m²;
SN4 (SDR41) with a minimum ring stiffness of 4kN/m²;
SN8 (SDR34) with a minimum ring stiffness of 8kN/m²;
SN10 (SDR31) with a minimum ring stiffness of 10kN/m²;
SN12 (SDR31) with a minimum ring stiffness of 12kN/m²;
SN16 (SDR26) with a minimum ring stiffness of 16kN/m².
| Tip articol | TUB |
|---|---|
| UM colete | BOX |
| Material | PVC |
| Fanta | 0 mm |
| Unghi | 0 Grade |
| Cod CPV | CPV 44163160-9 |
| Lungime | 6 m |
| Tip SN | 8 |
| Cantitate colet | 39 |
| Diametru | 160 |
| Cod vamal | 39172310 |
| Subclasa | PVC PIPES COMPACT PVC SEWER PIPE EXT D110-200 |
