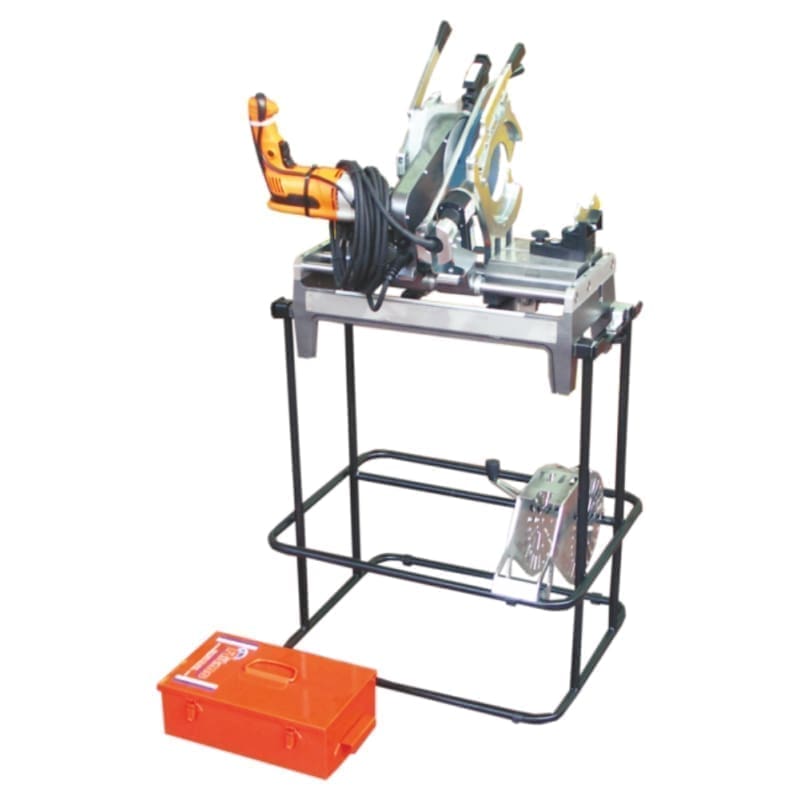

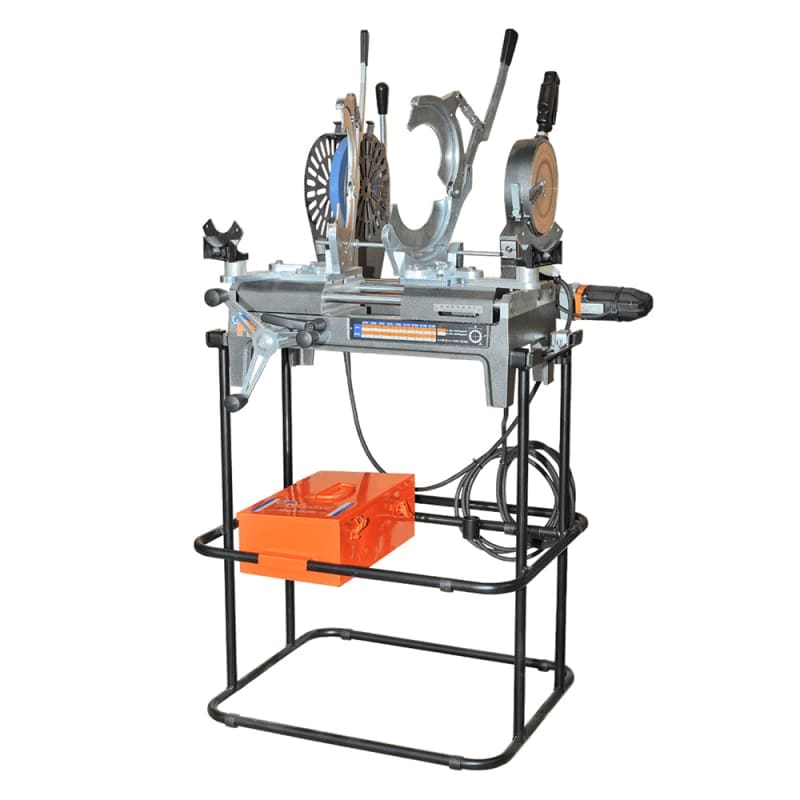

Portable welding machine used for butt fusion welding of polyethylene pipes and fittings for sewage systems, for diameters between 40 – 160 mm. Working range: 40-160 mm. Material: HDPE, PP, PVDF Supply voltage: 230 V Single phase 50/60 Hz Maximum power consumption: 2250 W Working temperature: 180-280°C Time to reach welding temperature: ~10″ Weight: 50 kg Machine dimensions: 664 x 580 x 1235 mm The product includes the following: • Machine body (with facing tool, side supports and service wrenches) • Heating plate TP 200 TE • Right clamp 160 JOYT • Left clamp 160 JOYT • MINI 160 JOYT frame • Box with set of clamps and side support adapters 40, 50, 63, 75, 90, 110, 125 mm Characterized by: • Removable heating plate • Safety switch on facing tool to prevent accidental start • Frame, most useful during operation and transport • Available with adjustable electronic temperature controller TE.
