The PP130x70x1000 modular channels with PP A15 class grates are components designed for water drainage from pedestrian areas.
Technical specifications:
-Manufacturing Standard: EN1433
-Channel Dimensions: 130 x 1000 mm, H = 70 mm
-Channel Material: PP (expansion coefficient 0.15 mm/m °C)
-Grate: A15 class, PP
Optional accessories (available upon request):
-Channel corner with PP A15 grate – code 80151130071
-DN 50 horizontal PVC end connection – code 80131130071
-DN110 vertical PVC connection with 4 screws – code 80131300110
Channels are installed on concrete and embedded in RCK 45 class concrete. The average installation temperature is 15-20 °C, constant.

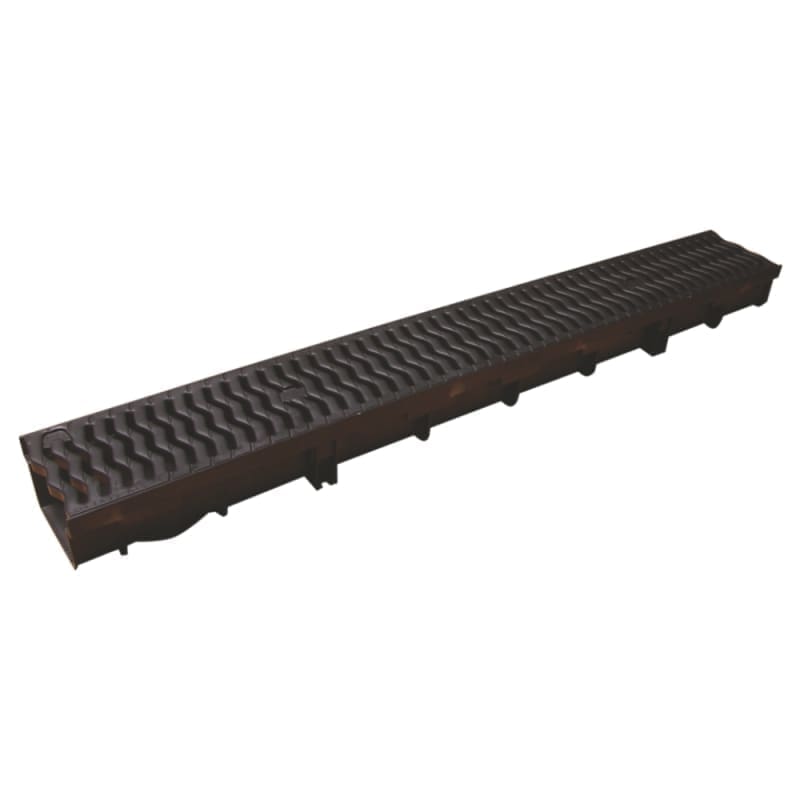

VALRain PP Modular Channel, Bottom, 130x70x1000, PP Grate A15
The PP130x70x1000 modular channels with PP A15 class grates are components designed for water drainage from pedestrian areas.Technical specifications:-Manufacturing Standard: EN1433-Channel Dimensions: 130 x 1000 mm, H = 70 mm-Channel Material: PP (expansion coefficient 0.15 mm/m °C)-Grate: A15 class, PP.Optional accessories (available upon request):-Channel corner with PP A15 grate – code 80151130071-DN 50 horizontal PVC end connection - code 80131130071-DN110 vertical PVC connection with 4 screws - code 80131300110.Channels are installed on concrete and embedded in RCK 45 class concrete. The average installation temperature is 15-20 °C, constant.
| Material | PP |
|---|---|
| UM colete | PIECE |
| Tip articol | CHANNEL |
| Cod CPV | CPV 44167300-1 |
| Cantitate colet | 1 |
| Cod vamal | 39269050 |
| Subclasa | Stormwater Channels |
