Roof drain for trafficable roofs DN110 with factory-mounted bitumen insulating flange and grate. -Body material: polypropylene (PP), thermally insulated drain body -Connection: DN110 -Drainage capacity: 6.00 l/s -Drainage outlet: vertical -Sealing flange: PP, stainless steel, factory-welded bitumen sleeve -Inlet: stainless steel grate, 137×137 mm -Standard: EN 1253 -Load class: K3, max. 300 kg -Recommended for bituminous sheets, for flat, trafficable roofs -Dimensions: 255 x 380 mm -Drilling hole dimension: 255 mm Installation must be carried out by specialized personnel in accordance with the manufacturer’s recommendations. Supplied with installation protection cap.

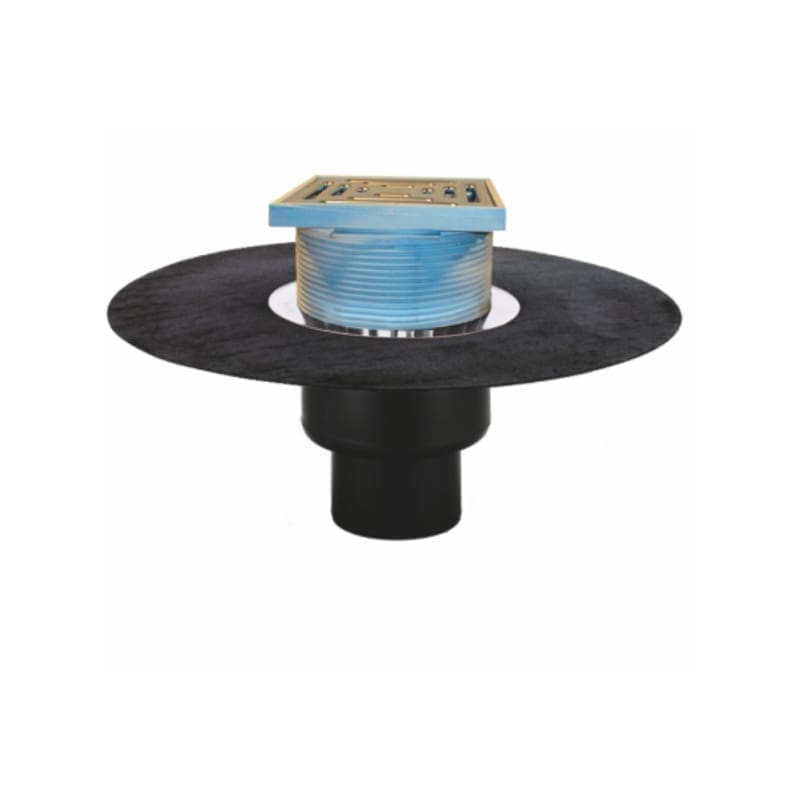

VALRain ROOF DRAIN VERTICAL DN110 WITH BITUMEN FLANGE AND 150×150 STAINLESS STEEL GRATE
Roof drain for trafficable roofs DN110 with factory-mounted bitumen insulating flange and grate. -Body material: polypropylene (PP), thermally insulated drain body -Connection: DN110 -Drainage capacity: 6.00 l/s -Drainage outlet: vertical -Sealing flange: PP, detection steel, factory-welded bitumen sleeve -Inlet: detection steel grate, 137x137 mm -Standard: EN 1253 -Load class: K3, max. 300 kg -Recommended for bituminous sheets, for flat, trafficable roofs -Dimensions: 255 x 380 mm -Drilling hole dimension: 255 mm Installation must be carried out by specialized personnel in accordance with the manufacturer's recommendations. Supplied with installation protection cap.
| UM colete | PIECE |
|---|---|
| Tip articol | RECEIVER |
| Cod CPV | CPV 44410000-7 |
| Cantitate colet | 1 |
| Diametru | 110 |
| Diametru(mm) | |
| Cod vamal | 39259080 |
| Subclasa | GULLY ACCESSORIES FOR RAINWATER DRAINAGE |
