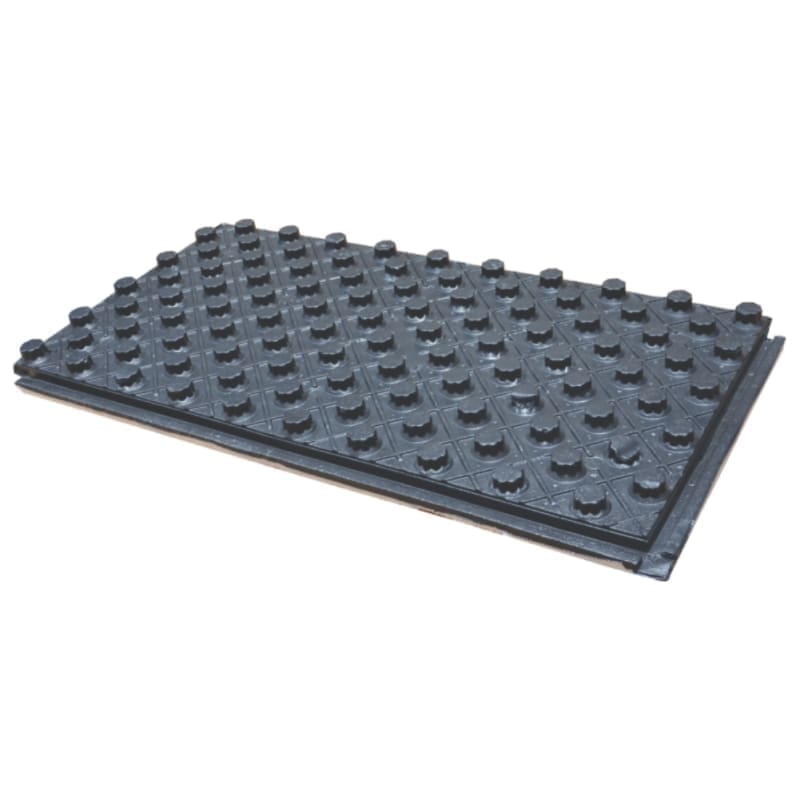

Application: Used in underfloor heating/cooling systems to provide thermal insulation of the installation from the rest of the building structure, as well as support for laying pipes in single/double serpentine or spiral configuration. Reference standard: SR EN 13163:2012 Designation according to EN 13163 – EPS-EN 13163-T(0)-L(3)-W(3)-S(5)-P(10)-DS(N)5-BS100-SD30-CP2 Material: expanded polystyrene EPS. Laminated film. Color: white EPS polyethylene. black laminated film. Pipe laying dimension: 16-18 [mm] Panel surface: 0.5 [m²] Actual panel dimension: 1030 x 530 [mm x mm] Usable panel dimension: 1000 x 500 [mm x mm] Installation pitch: 50 [mm]. Sound insulation: 23 [dB] Thermal conductivity: 0.040 [W/mK] Thermal resistance: 0.87 [m²K/W] Maximum load: 5kPa [500kg/m²] Euroclass fire reaction according to EN 13501-1: E Euroclass fire reaction according to DIN 4102: B2
