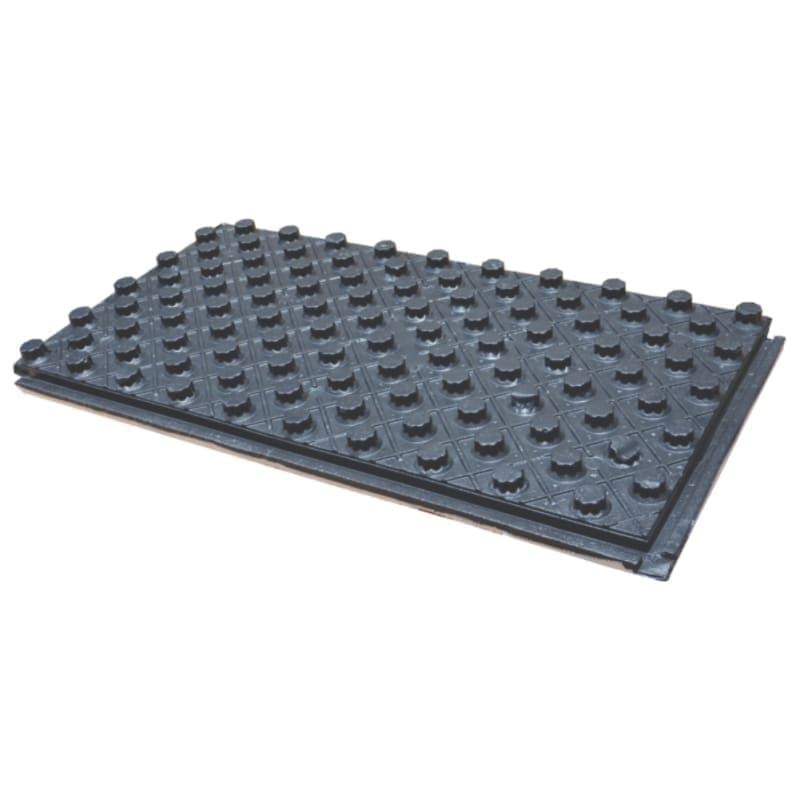

Application:
Used in underfloor heating/cooling systems to provide thermal insulation of the installation from the rest of the
building structure, as well as support for laying pipes in single/double serpentine or spiral form.
Reference standard: SR EN 13163:2012
Designation according to EN 13163 – EPS-EN13163-T(1)-L(2)-W(1)-Sb(1)-P(3)-BS200-CS(10)150- DS(N)2-TR150-WL(T)2
Material: expanded polystyrene EPS.
PS film.
Color: white EPS polyethylene.
PS film – black
Pipe laying dimension: 14-17 [mm]
Actual baseplate dimension: 1450 x 850 [mm x mm]
Usable baseplate dimension: 1400 x 800 [mm x mm]
Usable baseplate area: 1.12 [m²]
Total height: 30 [mm]
Stud height: 19 [mm]
Installation pitch: 50 [mm].
Thermal conductivity: 0.034 [W/mK]
Thermal resistance: 0.32 [m²K/W]
Maximum load: 45kPa [4500kg/m²]
Euroclass fire reaction according to EN 13501-1: E
