Use: Used in underfloor heating systems as well as in mixed systems (radiators/underfloor heating), to take the heat transfer fluid from the primary heating circuit at high temperature (55°C) and supply it to a secondary circuit at a lower temperature (20–45°C). Max. liquid temperature: 80°C Max. system pressure: 10 bar Fluid temperature range: 20–50°C Pump connection distance: 130 mm Pump connection: G1″ Manifold flow/return connection: G1″ By-pass: 0–800 l/h Qmax at ΔP = 3 m H2O: 2,800 l/h Insert photo here Link 1 Components: 1. Thermostatic valve: 3/4″ 2. Straight return valve: 3/4″ 3. Thermostatic head with immersion sensor 4. Balancing valve: 3/4″ 5. Circulation pump: Grundfos UPM3 AUTO L 15/70

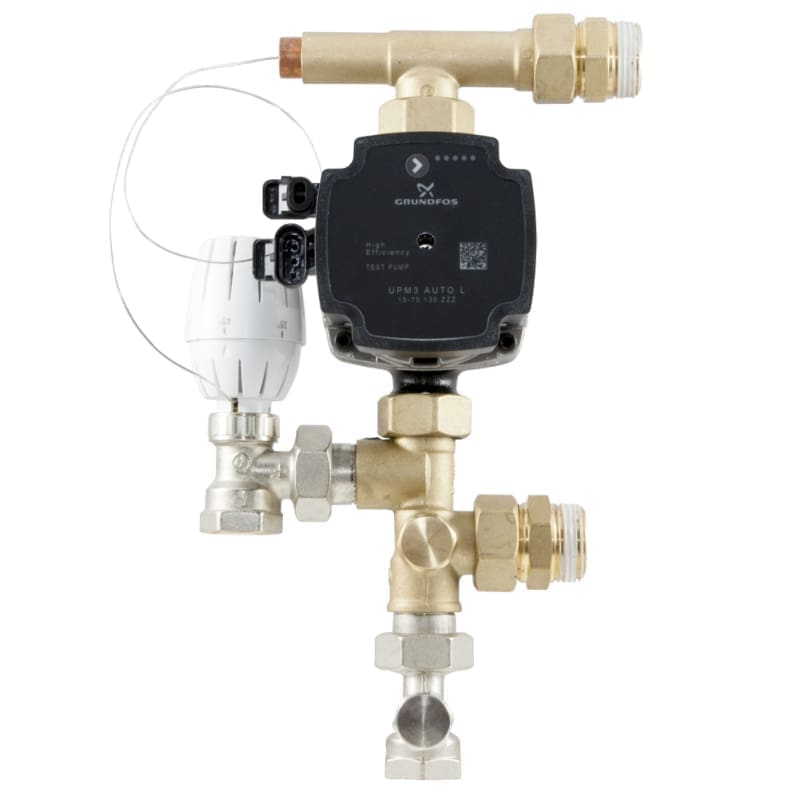

VALThermio MINI 1″ Underfloor Heating Mixing Kit
Use: Used in underfloor heating systems as well as in mixed systems (radiators/underfloor heating), to take the heat transfer fluid from the primary heating circuit at high temperature (55°C) and supply it to a secondary circuit at a lower temperature (20–45°C). Max. liquid temperature: 80°C Max. system pressure: 10 bar Fluid temperature range: 20–50°C Pump connection distance: 130 mm Pump connection: G1" Manifold flow/return connection: G1" By-pass: 0–800 l/h Qmax at ΔP = 3 m H2O: 2,800 l/h Insert photo here Link 1 Components: 1. Thermostatic valve: 3/4" 2. Straight return valve: 3/4" 3. Thermostatic head with immersion sensor 4. Balancing valve: 3/4" 5. Circulation pump: Grundfos UPM3 AUTO L 15/70
| UM colete | PIECE |
|---|---|
| DZP | FROM |
| Tip articol | MIXING KIT |
| Cod CPV | CPV 44115200-1 |
| Cantitate colet | 1 |
| Deseuri Electronice | 5.8 |
| Cod vamal | 84818099 |
| Subclasa | HEATING COMPONENTS |
