PexKIT tubing without oxygen barrier is used in underfloor heating systems, defined as Class 4, according to EN ISO 15875-1:2003 standard. For this application, manifolds with eurocon mounting are available for pipes with diameters between 14-20 mm. Material: cross-linked polyethylene PE-X silane cross-linking method PE-Xb. Reference standard: EN ISO 15875-2:2003 regarding production, testing and application scope. Maximum pressure: PN10 bar. Tubing is supplied in coils of various lengths in the following colors: natural, red and blue. Structure: single-layer 1 PE-Xb pipe

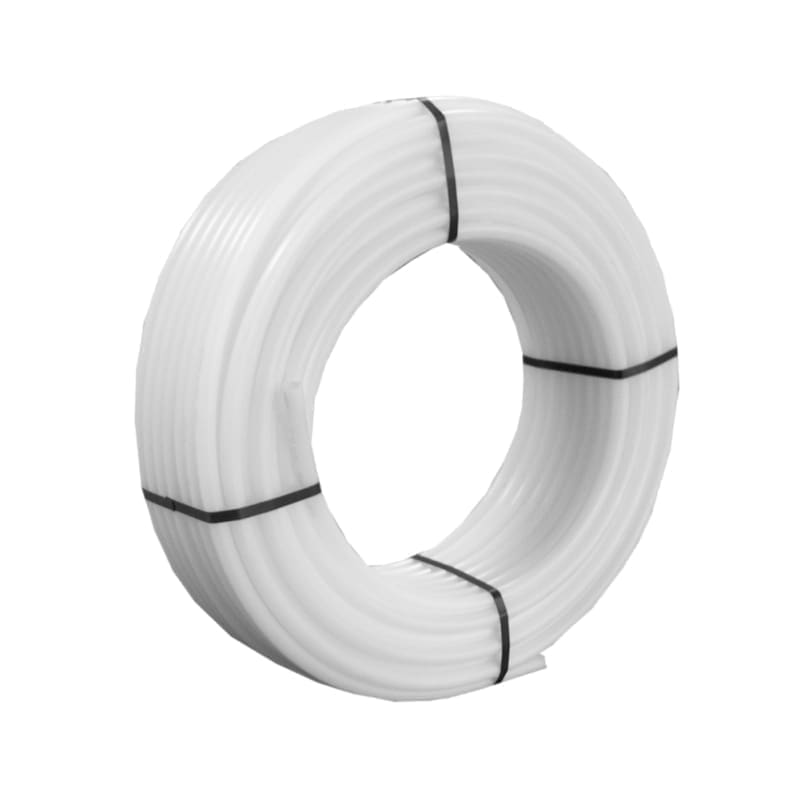

VALThermio Pipe 16×2.0 mm COIL 500 m
Used mainly in underfloor heating systems, class 4, in accordance with EN ISO 15875-2. Connection to manifolds/collectors is made using eurocone-type adapters.
Materials:
• PE-Xb – cross-linked polyethylene PE-X, silane cross-linking method
Reference standard:
• EN ISO 15875-2 Plastic piping systems for hot and cold water installations. Cross-linked polyethylene (PE-X). Part 2: Pipes.
Structure: single-layer PE-Xb (pipe without oxygen barrier)
Maximum pressure: 10 bar – for application class 4 – underfloor heating and low-temperature radiators.
Delivery: in coils.
Materials:
• PE-Xb – cross-linked polyethylene PE-X, silane cross-linking method
Reference standard:
• EN ISO 15875-2 Plastic piping systems for hot and cold water installations. Cross-linked polyethylene (PE-X). Part 2: Pipes.
Structure: single-layer PE-Xb (pipe without oxygen barrier)
Maximum pressure: 10 bar – for application class 4 – underfloor heating and low-temperature radiators.
Delivery: in coils.
| Tip articol | TEAVA |
|---|---|
| UM colete | PIECE |
| DZP | FROM |
| Ambalare | WRAPPED COIL |
| Material | PEX-B |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44160000-9 |
| Cantitate colet | 1 |
| Grosime | 2 mm |
| Diametru | 16 |
| Diametru(mm) | |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 120 Months |
| Lungime | 500 m |
| Cod vamal | 39172110 |
| Subclasa | PEX PIPES FOR UNDERFLOOR HEATING |
