Applications: – Domestic hot/cold water supply systems – High-temperature radiator heating systems. A non-demountable connection between the PPSU fitting and PE-X Class A Series 3.2 piping is achieved using sleeves. The piping features the following diameter x wall thickness characteristics: 16×2.2, 20×2.8, 25×3.5, 32×4.4. Reference Standard: EN ISO 15875-3: 2003. Material: PPSU Polyphenylsulfone. Pressure Rating: maximum 10 bar. Required Sliding Sleeves: – 3 pcs – 2 pcs Valrom Code PEX020000025000 and 1 pc Valrom Code PEX020000020000. Dedicated installation tools are required to connect the fittings and piping. Tool Types: – Manual expansion and translation kit, complete, D 16-D 32 – Valrom Code 64192201632 – Electric expansion and translation kit, complete, D.16-32 – Valrom Code 64192221632

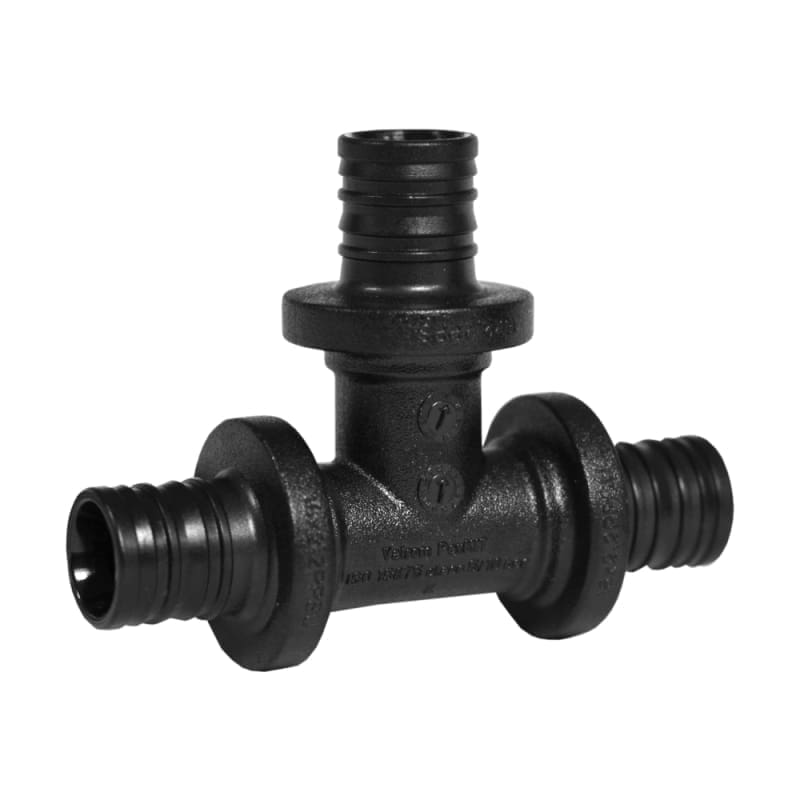

VALThermio PPSU Reduced Tee, D. 25/ 20/ 25
Applications: - Domestic hot/cold water supply systems - High-temperature radiator heating systems. A non-demountable connection between the PPSU fitting and PE-X Class A Series 3.2 piping is achieved using sleeves. The piping features the following diameter x wall thickness characteristics: 16x2.2, 20x2.8, 25x3.5, 32x4.4. Reference Standard: EN ISO 15875-3: 2003. Material: PPSU Polyphenylsulfone. Pressure Rating: maximum 10 bar. Required Sliding Sleeves: - 3 pcs - 2 pcs Valrom Code PEX020000025000 and 1 pc Valrom Code PEX020000020000. Dedicated installation tools are required to connect the fittings and piping. Tool Types: - Manual expansion and translation kit, complete, D 16-D 32 - Valrom Code 64192201632 - Electric expansion and translation kit, complete, D.16-32 - Valrom Code 64192221632
| UM colete | BOX |
|---|---|
| DZP | FROM |
| Ambalare | CARDBOARD BOX / PLASTIC BAG |
| Tip articol | TEE |
| Material | PPSU |
| Cod CPV | CPV 44167300-1 |
| Diametru | 25/20/25 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Cantitate colet | 70 |
| Cod vamal | 39174000 |
| Subclasa | PPSU FITTINGS FOR RADIATOR HEATING |
