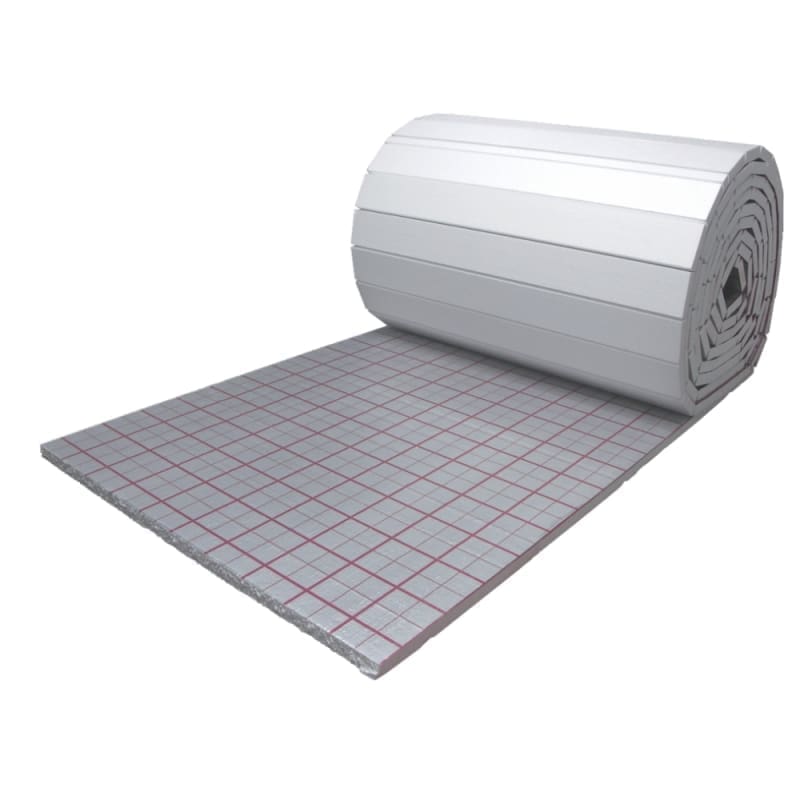

Usage: This product is utilized in underfloor heating/cooling systems to provide thermal insulation for the installation from the rest of the building structure, and to serve as a support for arranging pipes in single/double serpentine or spiral patterns. Reference Standard: SR EN 13163:2012 Designation according to EN 13163 – EPS-EN13163-T(1)-L(2)-W(1)-Sb(1)-P(3)-BS150-CS(10)100-DS(N)2-TR150-WL(T)2,5-WD(V)1 Material: Expanded polystyrene (EPS). Woven fabric film. Color: White EPS polyethylene. Woven fabric film – grey (silver) with grid. Usable board dimensions: 10000 x 1000 [mm x mm]. Usable board area: 10 [m²]. Total height: 25 [mm]. Installation pitch: 50 [mm]. Film – made of tear-resistant, woven fabric, laminated on the upper side, acting as a moisture barrier against water from the screed. Adhesive overlap: 3 cm width. Thermal conductivity: 0.035 [W/mK]. Thermal resistance: 0.71 [m²K/W]. Maximum load: 30 kPa [3000 kg/m²]. Euroclass reaction to fire according to EN 13501-1: E
