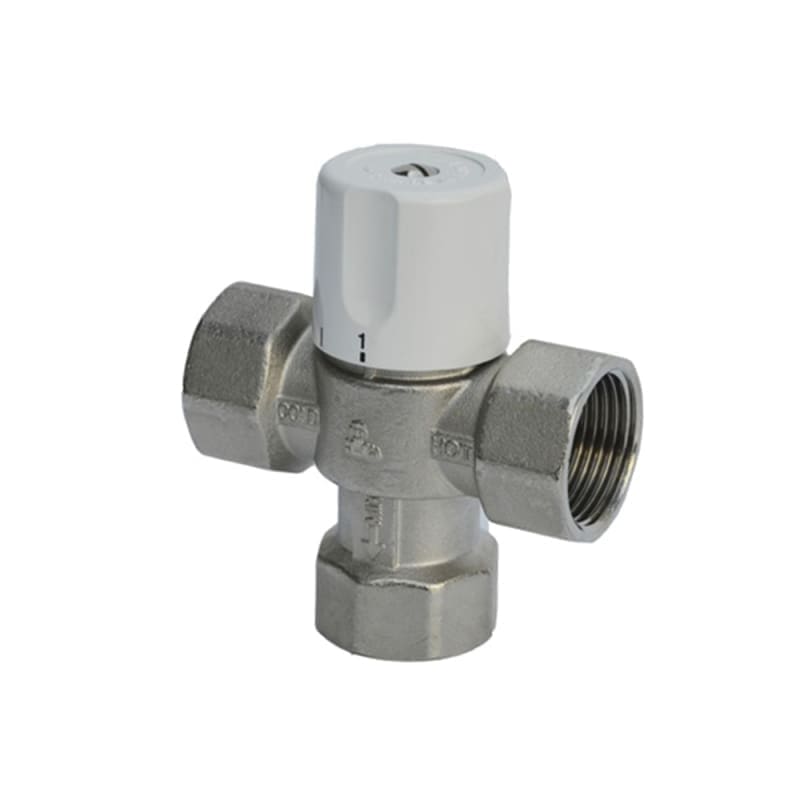

VALThermio THERMOSTATIC MIXING VALVE 3/4″
The thermostatic mixing valve can be used in hot water distribution systems to maintain a constant water mixture temperature, regardless of the hot and cold water supply temperatures. Its application range varies from public buildings, swimming pools, schools, and private homes to alternative energy systems. The primary purpose of the thermostatic valve is to protect against unexpectedly high water temperatures. Min. operating pressure: 2 bar Max. operating pressure: 10 bar Min. inlet temperature: 4°C Max. outlet temperature: 85°C (solar: 110°C) Mixed outlet temperature: 35°C-55°C Thread: ISO 228 Conveyed fluids: Water (Glycol max: 50%) Dimensions: D = 3/4" H = 115 mm L = 78 mm.
| UM colete | BOX |
|---|---|
| DZP | FROM |
| Diametru | "3/4""" |
| Tip articol | VALVE |
| Cod CPV | CPV 2131000-6 |
| Cantitate colet | 10 |
| Cod vamal | 84818099 |
| Subclasa | HEATING COMPONENTS |
