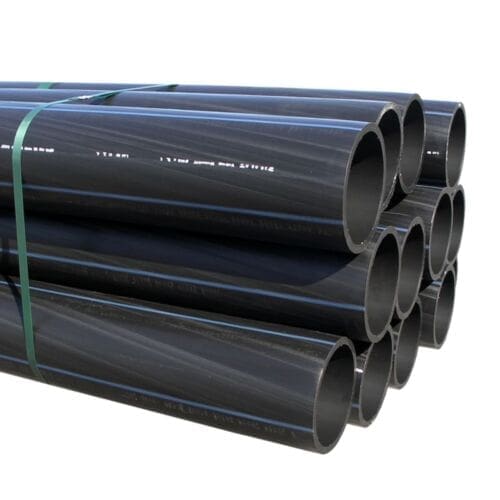

Black pipe, extruded from high-density
polyethylene compound type PE100. The PE100 compound is a homogeneous mixture of
polyethylene, antioxidants, pigments, and UV radiation
stabilizers.

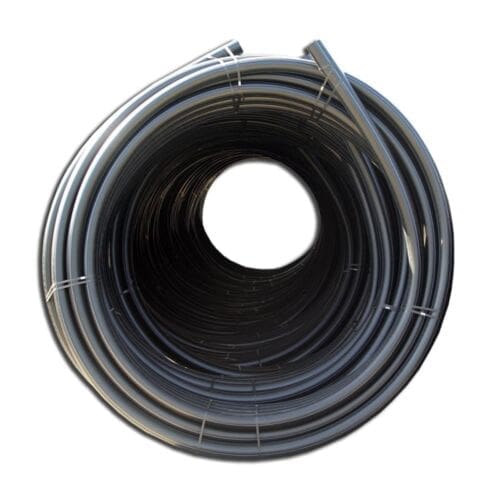

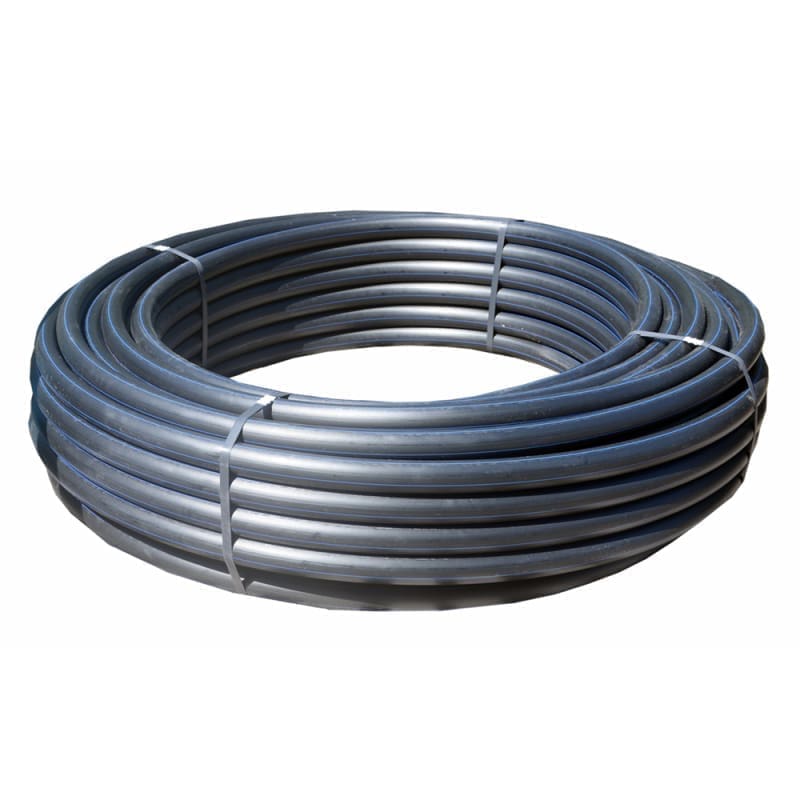

VALWater HDPE Drinking Water Pipe STF13 DN 20 PN 6 SDR21, 200m Coil
Polyethylene pipes are designed for the pressurized transport of drinking water, with a maximum nominal pressure of 6 bar (design coefficient C=1.25, fluid temperature 20°C). They are installed underground using conventional methods, in an open trench with sand embedment.
The pipes are mechanically joined using VALWater compression fittings. Due to the wall thickness, these pipes cannot be installed with electrofusion or butt welding.
The pipes are mechanically joined using VALWater compression fittings. Due to the wall thickness, these pipes cannot be installed with electrofusion or butt welding.
| Material | PE100 |
|---|---|
| Subclasa | PEHD WATER PIPE D20-40 |
| Tip articol | TUB |
| UM colete | ROLL |
| Ambalare | COLAC / BARS TO GO |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Presiune nominala | 6 bar |
| Diametru | 20 |
| Diametru(mm) | |
| SDR | 21 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Lungime | 200 m |
| Cod vamal | 39172110 |
