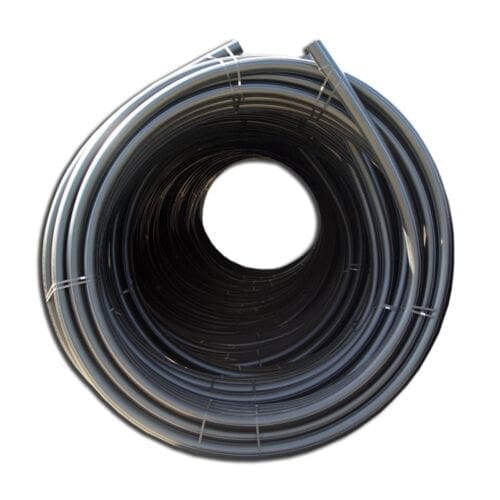

Polyethylene pipes are designed for transporting drinking water under pressure, with a maximum nominal pressure of 6 bar (design coefficient C=1.25, fluid temperature 20°C). They are installed underground using the conventional method, in an open trench with sand bedding.
The pipes are mechanically joined using VALWater compression fittings. Given the wall thickness, the pipes cannot be installed with electrofusion or butt welding.

Material	PE100
Subclasa	PEHD WATER PIPE D20-40
Tip articol	TUB
UM colete	ROLL
Ambalare	COLAC / BARS TO GO
Tara origine preferentiala	EU
Cod CPV	CPV 44163160-9
Cantitate colet	1
Presiune nominala	6 bar
SDR	21
Perioada garantie	24 Months
Diametru	25
Diametru(mm)
Durata estimata de viata	50 Years
Lungime	200 m
Cod vamal	39172110
