black pipe, extruded from high-density polyethylene compound type PE100. The PE100 compound is a homogeneous blend of polyethylene, antioxidants, pigments, and UV radiation stabilisers. Reference standard: EN 12201-1,2: Plastic piping systems for water supply, service connections and pressurised drainage and sewerage systems. Polyethylene (PE). Part 1: General, Part 2: Pipes. Pipe dimensions are standardised in accordance with EN 12201-2. Use: WaterKIT PE100CERT pipes are used to build drinking water supply networks installed buried in the ground. A 50-year service life corresponds to an operating temperature of 20°C and a working pressure equal to or lower than the PN for which the pipe was manufactured. Approvals: Technical approval and technical assessment for use in construction. Sanitary approval for use with drinking water.

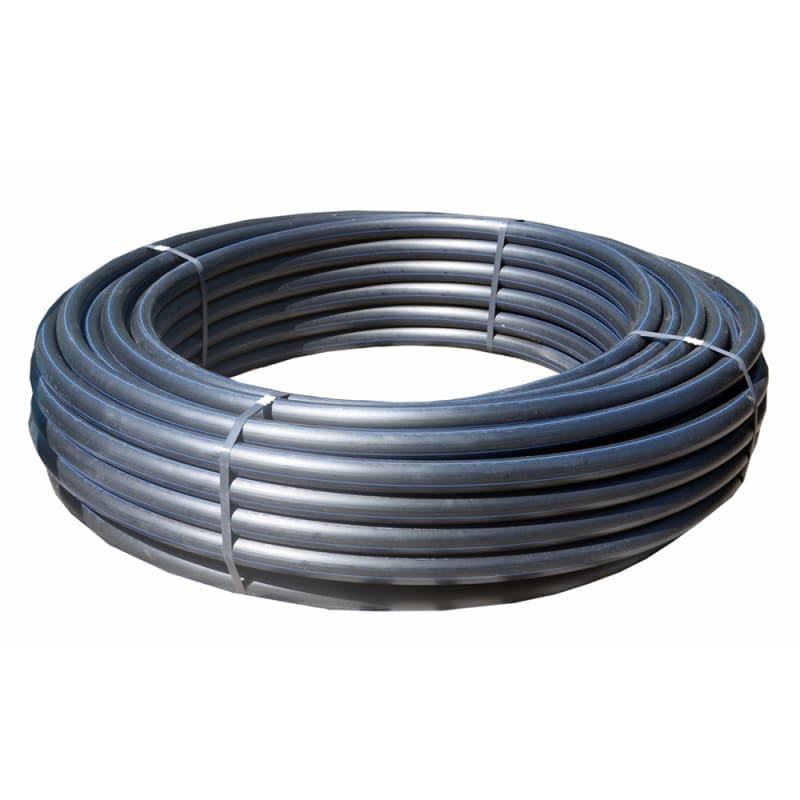

VALWater PIPE FOR DRINKING WATER PE100 D. 90×10.1 mm PN20 SDR9 COIL 50 m
High-density polyethylene PE100 pipes are used to build cold water supply networks (including drinking water). They are installed buried in the ground, using the conventional method, in an open trench with sand bedding.
Product standard: SR EN 12201-2: Plastic piping systems for water supply and for service connections and pressurised drainage and sewerage systems. Polyethylene (PE). Part 2: Pipes.
Product standard: SR EN 12201-2: Plastic piping systems for water supply and for service connections and pressurised drainage and sewerage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| UM colete | ROLL |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| SDR | 9 |
| Presiune nominala | 20 bar |
| Lungime | 50 m |
| Diametru | 90 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
