black pipe, extruded from high-density polyethylene compound type PE100. PE100 compound is a homogeneous mixture of polyethylene, antioxidants, pigments and UV radiation stabilizers. Reference standard: EN 12201-1,2: Plastics piping systems for water supply, and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 1 General, Part 2: Pipes. Pipe dimensions are standardized in accordance with EN 12201-2. Use: WaterKIT PE100CERT pipes are used for drinking water supply networks installed underground. The 50-year service life corresponds to an operating temperature of 20°C and a working pressure equal to or less than the PN for which the pipe was manufactured. Approvals: Technical approval and agrément for use in construction. Sanitary approval for use with drinking water.

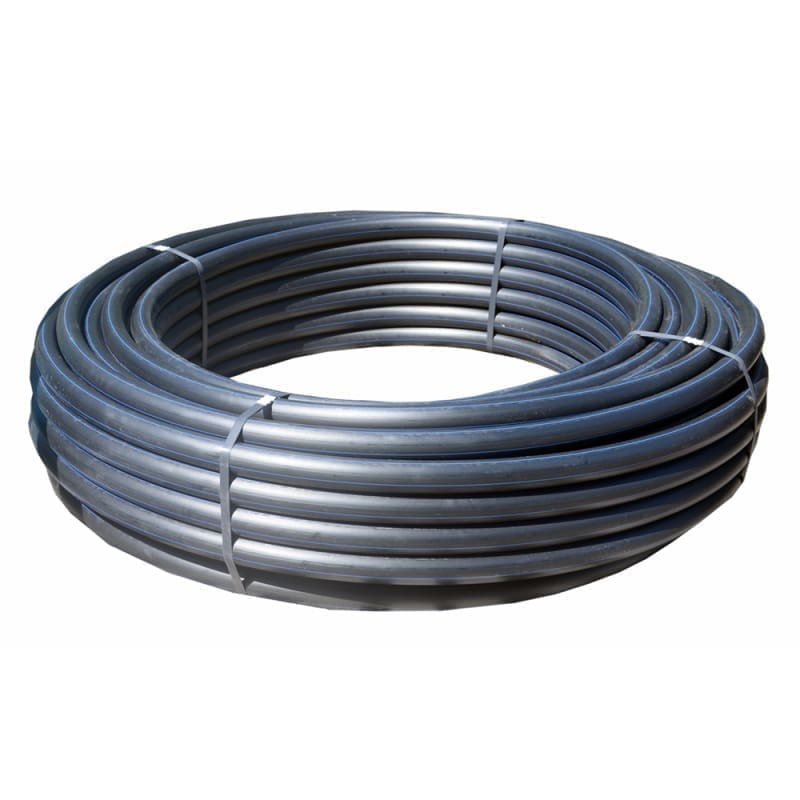

VALWater DRINKING WATER PIPE PE100 D. 90×12.3mm PN25 SDR7.4 6M
High-density polyethylene PE100 pipes are used for cold water supply networks (including drinking water), installed underground using the conventional method, in open trenches with sand bedding.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Lungime | 6 m |
| SDR | 7,4 |
| Grosime | 12.3 mm |
| Presiune nominala | 25 bar |
| Diametru | 90 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
