Black high-density polyethylene pipe, PE100RC type. PE100 RC (Resistant to Cracks) polyethylene exhibits crack propagation resistance under stress, compared to PE80 and PE100. The dimensions of PE100RC pipes are standardized according to EN 12201-2. Reference Standard: PAS1075 (Publicly Available Specification) is a technical specification published by Deutsches Institut für Normung, which includes: characteristics, requirements, and test methods for PE100RC polyethylene pipes that can be installed using unconventional methods. Usage: WaterKIT PE100RC pipes are used in pressurized drinking water supply networks, installed using unconventional methods (horizontal directional drilling, microtunneling, open trench without sand bedding, rehabilitation of old pipelines, etc.). Approvals: Approval and technical certification for use in construction. Sanitary approval for use with potable water.

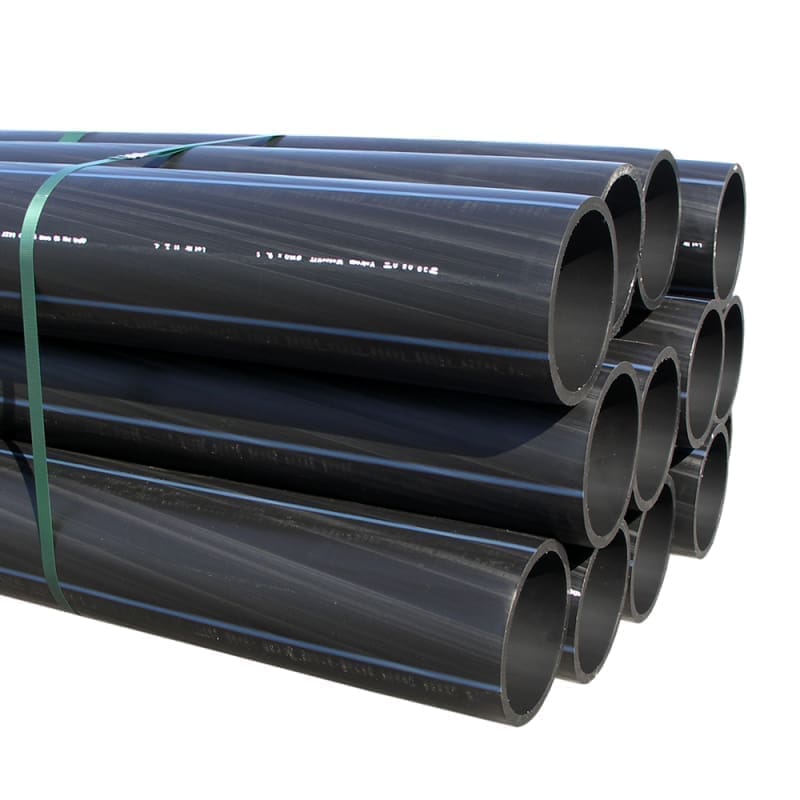

VALWater PE100RC Drinking Water Pipe D.450×40.9mm PN16 SDR11, 13m Length
High-density polyethylene PE100RC pipes are used for cold water supply networks (including potable water) and are installed underground.
Due to the increased resistance of PE100RC material to slow crack propagation, these pipes can also be installed using unconventional methods (e.g., horizontal directional drilling, relining) without reducing the network's service life, or in open trenches without sand bedding, with backfill performed using excavated soil if it is compactable.
Product Standard: SR EN 12201-2: Plastics piping systems for water supply and for connections and pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
Due to the increased resistance of PE100RC material to slow crack propagation, these pipes can also be installed using unconventional methods (e.g., horizontal directional drilling, relining) without reducing the network's service life, or in open trenches without sand bedding, with backfill performed using excavated soil if it is compactable.
Product Standard: SR EN 12201-2: Plastics piping systems for water supply and for connections and pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
| Tip articol | TUB |
|---|---|
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Material | PE100RC |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| SDR | 11 |
| Lungime | 13 m |
| Presiune nominala | 16 bar |
| Grosime | 40.9 mm |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 450 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
| Subclasa | HDPE-RC WATER PIPES D355-630 |
