black pipe, extruded from PE100 high-density polyethylene compound. PE100 compound is a homogeneous mixture of polyethylene, antioxidants, pigments and UV radiation stabilizers. Reference standard: EN 12201-1,2: Plastics piping systems for water supply, service lines and pressure drainage and sewerage systems. Polyethylene (PE). Part 1 General, Part 2: Pipes. Pipe dimensions are standardized in accordance with EN 12201-2. Application WaterKIT PE100CERT pipes are used for drinking water supply networks installed underground. The 50-year service life corresponds to an operating temperature of 20°C and an operating pressure equal to or lower than the PN for which the pipe was manufactured. Approvals Approval and technical agrément for use in construction. Sanitary approval for use with drinking water.

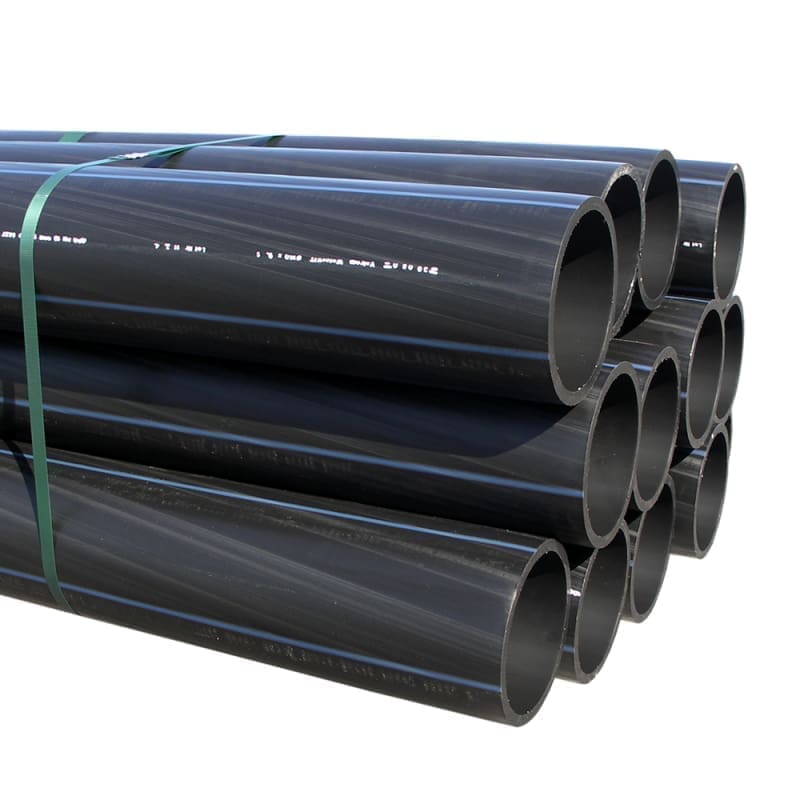

VALWater DRINKING WATER PE100 CERT PIPE D.200×7.3mm PN6 SDR27.6 BAR 13m
High-density polyethylene PE100 pipes are used for cold water supply networks (including drinking water), installed underground using the conventional method, in open trenches with sand bedding.
When selecting these pipes, pipe stiffness evaluation is required.
When selecting these pipes, pipe stiffness evaluation is required.
| Material | PE100 |
|---|---|
| Subclasa | PEHD WATER PIPE D125-315 |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Presiune nominala | 6 bar |
| Lungime | 13 m |
| SDR | 27,6 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 200 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
