Used for connection to polyethylene water supply pipes with maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components Body made of polypropylene, black color Bolts and nuts made of galvanized steel O-ring made of NBR STAINLESS STEEL stiffening ring AISI 430 Reference standards Thread according to DIN 2999 BS 21 ISO R 7/1 up to D160mm. ISO 228 for D180 D315mm Pipe coupling: PE according to DIN8072-8074, ISO 3607 and EN ISO 12201 PVC according to ISO161, EN ISO 1452, BRL-K502 PP according to ISO 3609, UNI 8318, DIN 807.

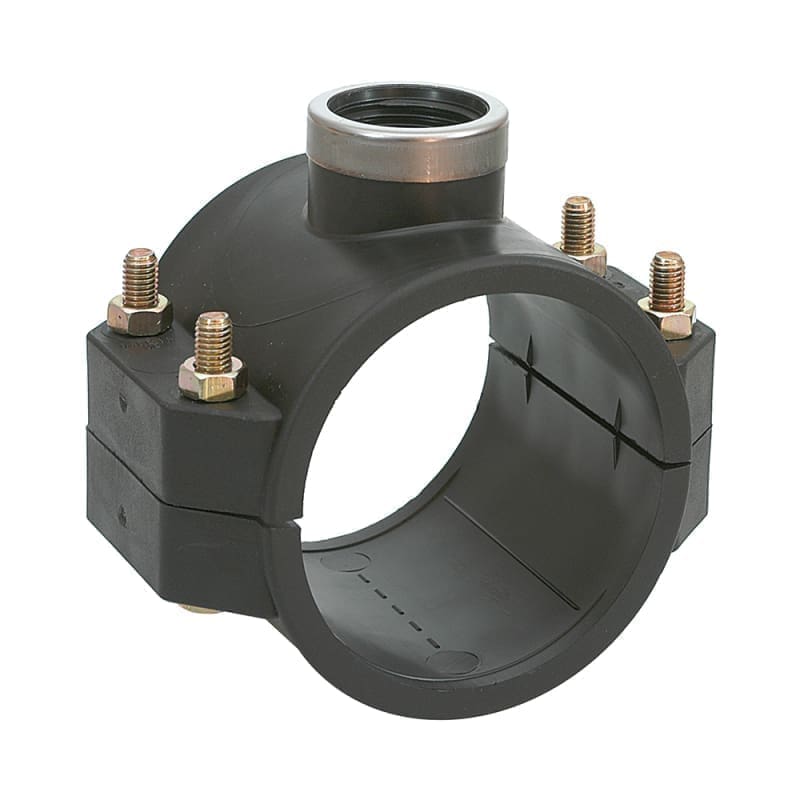

VALWater PN10 SADDLE CLAMP D. 40×1″
Used for connection to polyethylene water supply pipes with maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components Body made of polypropylene, black color Bolts and nuts made of galvanized steel O-ring made of NBR Detection stiffening ring AISI 430 Reference standards Thread according to DIN 2999 BS 21 ISO R 7/1 up to D160mm. ISO 228 for D180 D315mm Pipe coupling: PE according to DIN8072-8074, ISO 3607 and EN ISO 12201 PVC according to ISO161, EN ISO 1452, BRL-K502 PP according to ISO 3609, UNI 8318, DIN 807.
| UM colete | BOX |
|---|---|
| Filet | FI |
| Tip articol | PIESA |
| Cod CPV | CPV 44167000-8 |
| Presiune nominala | 10 bar |
| Diametru | 40X1 |
| Cantitate colet | 60 |
| Cod vamal | 39174000 |
| Subclasa | PP COMPRESSION FITTINGS WATER |
