Black pipe, extruded from high-density
polyethylene PE100 compound. The PE100 compound is a homogeneous
mixture of polyethylene, antioxidants, pigments, and stabilizers against
the action of UV radiation.
Reference Standard: EN 12201-1,2: Plastic piping systems for
water supply, connections, and
pressure drainage systems. Polyethylene (PE). Part 1
General, Part 2: Pipes.
Pipe dimensions are standardized, in accordance with EN 12201-2.
Usage
WaterKIT PE100CERT pipes are used for constructing potable water supply
networks installed underground.
The service life of 50 years corresponds to a service temperature
of 20°C and for a working pressure equal to or less
than the PN for which the pipe was manufactured.
Approvals
Approval and technical agreement for use in construction.
Sanitary approval for use with potable water.

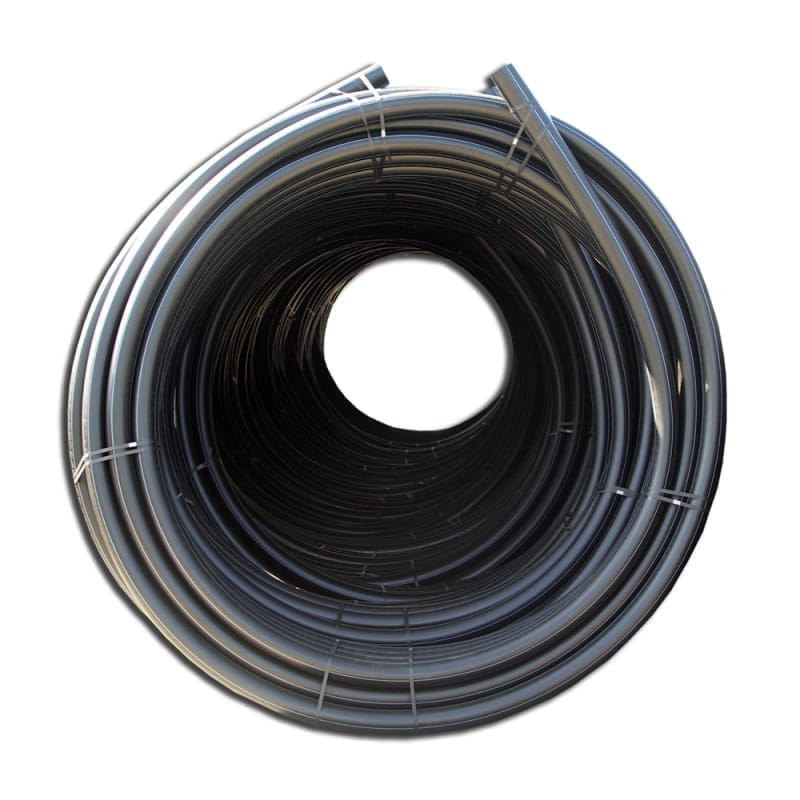

VALWater POTABLE WATER PIPE PE100 CERTIFIED D.110×5.3 mm PN 8 SDR 21, 80 m COIL
High-density polyethylene PE100 pipes are used for constructing cold water supply networks (including potable water). They are installed underground using conventional methods, in open trenches with sand bedding.
Product Standard: SR EN 12201-2 : Plastic piping systems for water supply and for connections and pressure drainage systems. Polyethylene (PE). Part 2: Pipes.
Product Standard: SR EN 12201-2 : Plastic piping systems for water supply and for connections and pressure drainage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| UM colete | ROLL |
| Ambalare | COLAC / BARS TO GO |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Grosime | 5.3 mm |
| Presiune nominala | 8 bar |
| SDR | 21 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Lungime | 80 m |
| Diametru | 110 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
